Upgraded NanoVNA-F V3 Vector Network Analyzer 4.3" 1MHz–6GHz Antenna Analyzer Measuring S-Parameters Voltage Standing Wave Ratio SWR, Phase, Delay, Smith Chart Support RTC Real time

KWD 108.500
Brand
AURSINC
Weight
0.6 kg
– 1 +

Special Features

  • [Upgraded Performance] nanovna f v3 with 4.3inch (800x480pixel) touchscreen display, 1MHz to 6GHz widely measuring range. With the optimally designed signal processing system, the scan speed is up to 200 points/s and the maximum scanning points is up to 801. The RF interface of antenna analyzer is SMA connector witch can be used to connect DUTs directly and the nanovna analyzer supports TDR function for cable lengths measurement

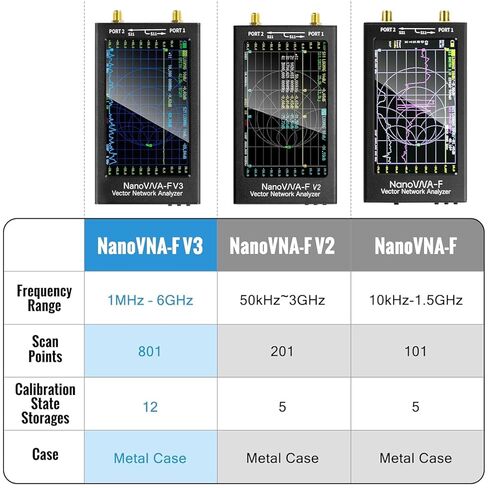

  • [Ultra Wide Frequency] Compared with the nanovna f v2 (50kHz-3GHz), the nanovna f v3 antenna analyzer measurement range is improved to 1MHz-6GHz. It can be used for S11 and S21 measurements. The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB. The scan points is up to 101-801 and the calibration result storage is 12, covering up to the full low or high frequency range. The vna antenna analyzers are versatile and offer faster and more efficient operation

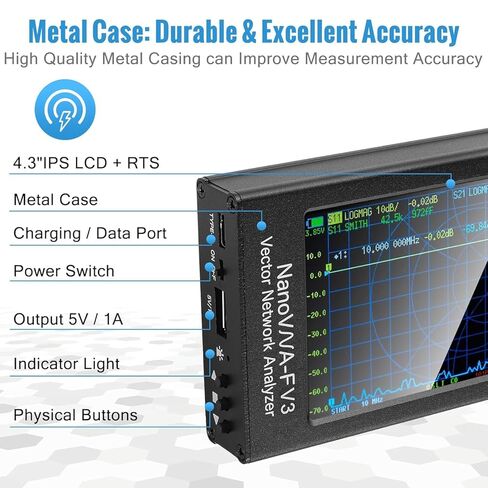

  • [Efficient and Worthwhile] The nano vna antenna analyzer is made of metal material, which is durable and can effectively shield electromagnetic interference. Powerful features, including automatic calibration, PC software control, compatible with NanoVNA-Saver to facilitate measurement data transfer, storage and export. Built-in 4500m-ah rechargeable battery, with C-type charging cable and LED charging indicator, suitable for indoor or outdoor application

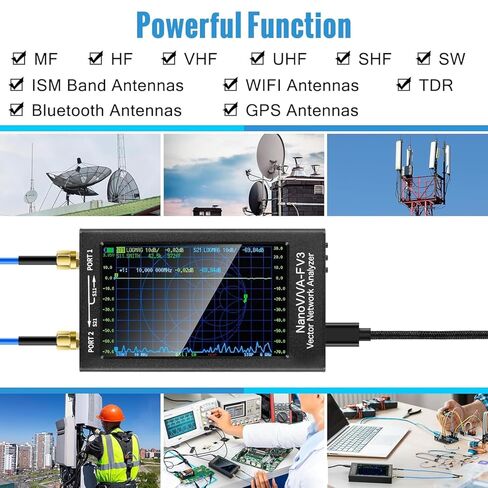

  • [Multiple Measurement Functions] NanoVNA-F V3 antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. Nano vna antenna analyzer are widely used, with fast response time and high operating efficiency
  • [Authentic & Package] NanoVNA-F V3 developed by Hugen. Package include AURSINC NanoVNA-F V3 host (with 4500mAh battery) display: 4.3 inch TFT x1, SMA OPEN/SHORT/LOAD calibration kit ×1, SMA-KK adapter ×1, SMA-JJ adapter ×1, SMA-JKW adapter ×1, 20cm SMA-JJ RG405 coaxial cable ×2, USB type-C cable ×1
