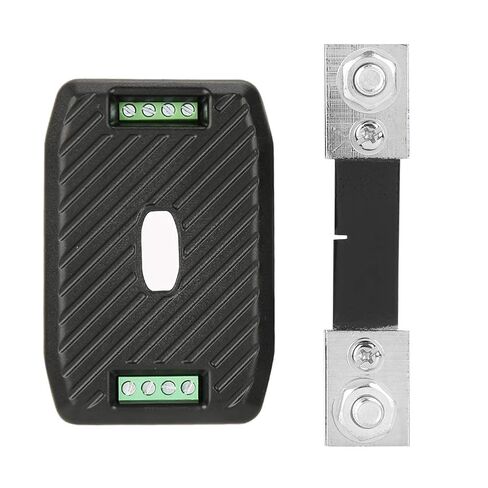

Akozon DC Voltage Current Frequency Power Energy Meter Communication Module(PZEM-017 + 100A)

KWD 6.500
Brand
Akozon
– 1 +

Special Features

  • 【Multifunctional】 This module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read out via the RS485 interface.
  • 【Multifunctional】 This module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read out via the RS485 interface.
  • 【Modbus RTU protocol】 The application layer uses the Modbus RTU protocol to communicate, it only supports function codes such as 0x03, 0x04, 0x06, 0x41, 0x42, etc. It can display six measurement parameters on the computer when communicating via the software;can also communicate with the buyer's own microcontroller (the buyer has to program this himself)
  • 【Widely use】 Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm. Due to the high accuracy and better compatibility, it will be widely used.
  • 【Input power】 RS485 interface is passive output, external power supply of 5V is required and the external power supply must be ＞ 100mA. Current measurement range is 50A, 100A, 200A, 300A depending on the external shunt specification.
  • 【 Different kits】 Physical layer uses UART to RS485 communication interface, baud rate is 9600, 8 data bits, 2 stop bit, no parity. There are 10 different sets to choose from, enough to meet your different needs.

Description

Specification:
Brand: PEACEFAIR
Model: PZEM-017
Voltage:
Measuring range: 0.05-300V (if the test voltage is ＜ 7V, please use the independent power supply mode)
Resolution: 0.01 V
Measurement accuracy: 1%
Current:
Measuring range: 0.02-300A (can be combined with 50A, 100A, 200A, 300A four types of shunt)
Resolution: 0.01A
Measurement accuracy: 1% power:
Measuring range: 0.2-90 kW Resolution: 0.1 W
Measurement accuracy: 1%
Energy consumption:
Measuring range: 0-9999kWh
Resolution: 1 Wh
Measurement accuracy: 1%
Reset energy: use software to reset
Overvoltage alarm:
Standard high voltage threshold: 300 V
Standard low voltage threshold: 7 V
Communication interface: RS485 interface
Working temperature: -20 ~ 60 ℃
Product size: Approx. 9 * 6 * 2.3 cm/3.5 * 2.4 * 0.9 inch
Weight: Approx. 77 g ~ 287 g/2.7 oz ~ 10.1 oz
Optional kit
# 1 1 x DC consumption meter
# 2 1 x DC consumption meter;1 x RS485 to USB cable
# 3 1 x DC consumption meter; 1 x 50A shunt
# 4 1 x DC consumption meter; 1 x 100A shunt
# 5 1 x DC consumption meter; 1 x 200A shunt
# 6 1 x DC consumption meter; 1 x 300A shunt
# 7 1 x DC consumption meter; 1 x RS485 to USB cable; 1 x 50A shunt
# 8 1 x DC consumption meter; 1 x RS485 to USB cable; 1 x 100A shunt
# 9 1 x DC consumption meter; 1 x RS485 to USB cable; 1 x 200A shunt
# 10 1 x DC consumption meter; 1 x RS485 to USB cable; 1 x 300A shunt
