10 Pairs Precision Parallel Blocks, 1/8 Inch x 6 Inch Straightedge Parallel Bar Block Set, Hardened Precision Machinist Tool and Height Tolerance 0.0002 Inch Hardness

KWD 12.500

Brand
mitoharet
Category
Calibration
1 +

Special Features

  • Use the ABN Machinist Thin Parallel Bars 20-Piece Tool Set, Block Pairs for any machining; Use on a jig or drill press for milling work.
  • Constructed from solid steel that is stress relieved against distortion as well as precision ground and hardened for ultimate strength and longevity;we are pre-oiled for a long-lasting life (we recommend reapplying oil after use).
  • Package contains 20 parallel bars - 2 of each size and 1 storage case for your convenience.
  • This package includes 10 pairs of 1/8-inch x 6-inch parallel bars with the following heights: 1/2 In, 5/8 In, 3/4 In, 7/8 In, 1 In, 1-1/8 In, 1-1/4 In, 1-3/8 In, 1-1/2 In, and 1-5/8 In; Permanently laser-etched size in standard SAE (inches) on each parallel; The 2 holes on each individual bar.
  • Plastic molded carrying case for easy transportation, safe storage, and quick organization.

Description

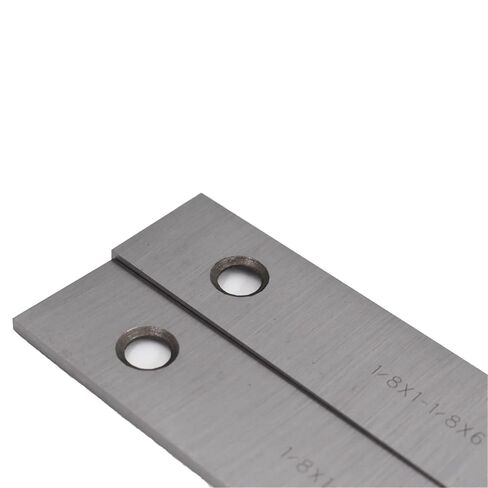

10 Matched Machinist Thin Parallel Bars

Description:
- Parallelism: +/- .0002". Paired: +/- .0002" in Height
- All the size are 6" Long and 1/8" Wide or Thick.Each Set contains 1 Pair of the height listed: 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2" & 1-5/8".
- Easier Handling because there are 2 holes in each one.
- Made from high quality tool steel stress relief against distortion, precision ground and hardened.Combo Set, 10 Matched Pairs, Thin Style.

Features:
--Parallels are some of the most versatile workholding pieces in CNC milling.
--The different thicknesses allow the piece to be raised up in different increments.

Package includes:
10 x Matched Machinist Thin Parallel Bars
1 x Red plastic box
