1. brand new and
2. The output of this terminal block is actually an electronic switch, double-conducting, Therefore, the terminal block can also be used in the detecting device to control the on/off of a or a small load.
3. This terminal block is a conversion isolation terminal block that can be used for isolation of highly stable input points. The digital quantity is optically isolated.
4. The PNP can also be converted to an NPN or an NPN can be converted to a PNP .
5. The default input voltage of this terminal block is 10-28V.

Spec:
Features:
brand new and
The
output of this terminal block is actually an electronic switch,
double-conducting, Therefore, the terminal block can also be used in the
detecting device to control the on/off of a or a small load.
This
terminal block is a conversion isolation terminal block that can
be used for isolation of highly stable input points. The digital
quantity is optically isolated.
The PNP can also be converted to an NPN or an NPN can be converted to a PNP .
The default input voltage of this terminal block is 10-28V.
Specification:

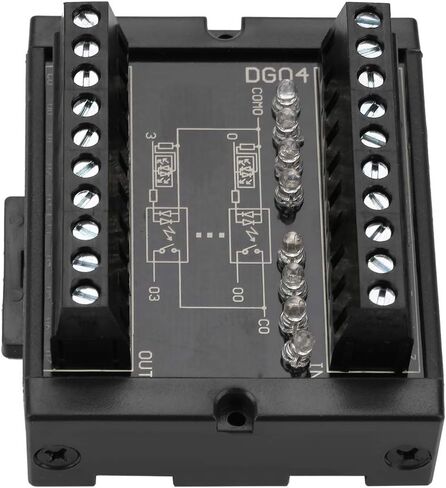

Model:DG04
Input voltage: 10-28v dc
Output on-voltage: 1v
Maximum output frequency :10 KHZ
Output ed load current :50mA (AC/DC)
Maximum output load voltage: 10-28v
Output isolation voltage :3750Vrms (min)
Ope ing tempe ure :-40 ~ 85℃
Weight: Approx.65g/2.3oz
Instructions:
When the input is NPN, the input common terminal COM is connected to a high , and when the input is at a low , the corresponding input indication is red light
When the input is PNP, the input common terminal COM is connected to the low , and when the input high is effective, the corresponding input indication is blue light
Application
