Product Description
The board is of high power MOS trigger switch driver module and control board with field-effect tube to adjust the electronic switch.Besides it works at 10A,400W under common temperature which satisfies most devices usage and realizes the control of great power devices in a relaxed way.

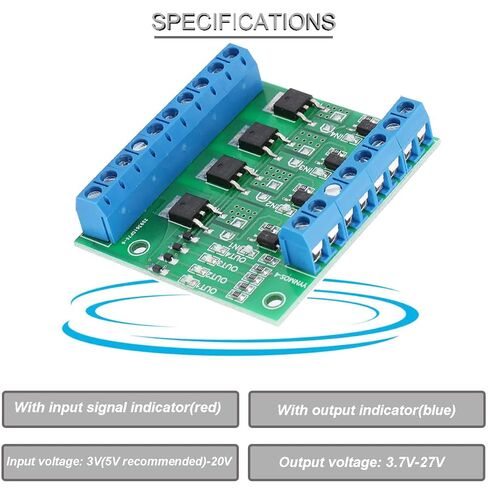

Specifications:
1.Operating Voltage: DC 3V - 27V(5V and above recommended)
2.The trigger source: digital high-low (DC3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0--20KHZ perfect support
Output capacity: DC 3.7V - 27V, at room temperature, current of each channel less than or equal to 10A, power 400W

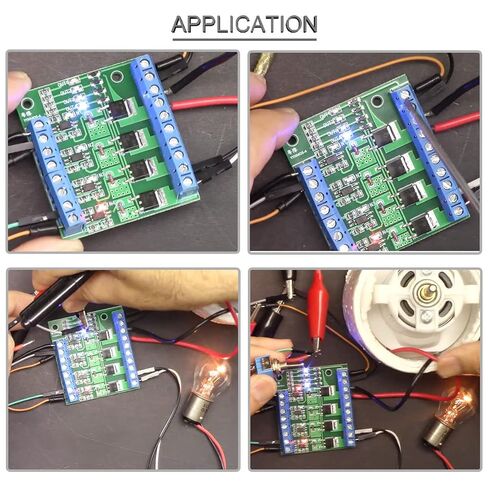

3.Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness and so on
4.PWM frequency: 0-1kHz
5.With input signal indicator
6.With output indicator
7.Operating temperature: -40-85 ℃

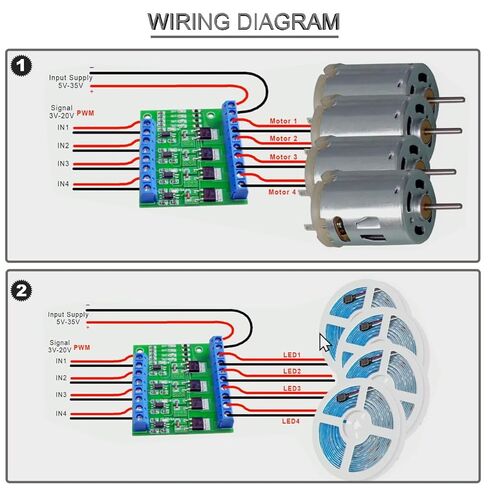

Wiring terminal description:
DC+: The positive pole of the device's DC power supply
DC-: The negative pole of the device's DC power supply
PWM: signal input terminal (connected to MCU IO port, PLC interface, DC power supply, etc.)
GND: signal negative terminal
OUT+: Positive output terminal (connect to the positive terminal of the device)
OUT-: The negative pole of the output terminal (connect to the negative pole of the device)

Package includes:

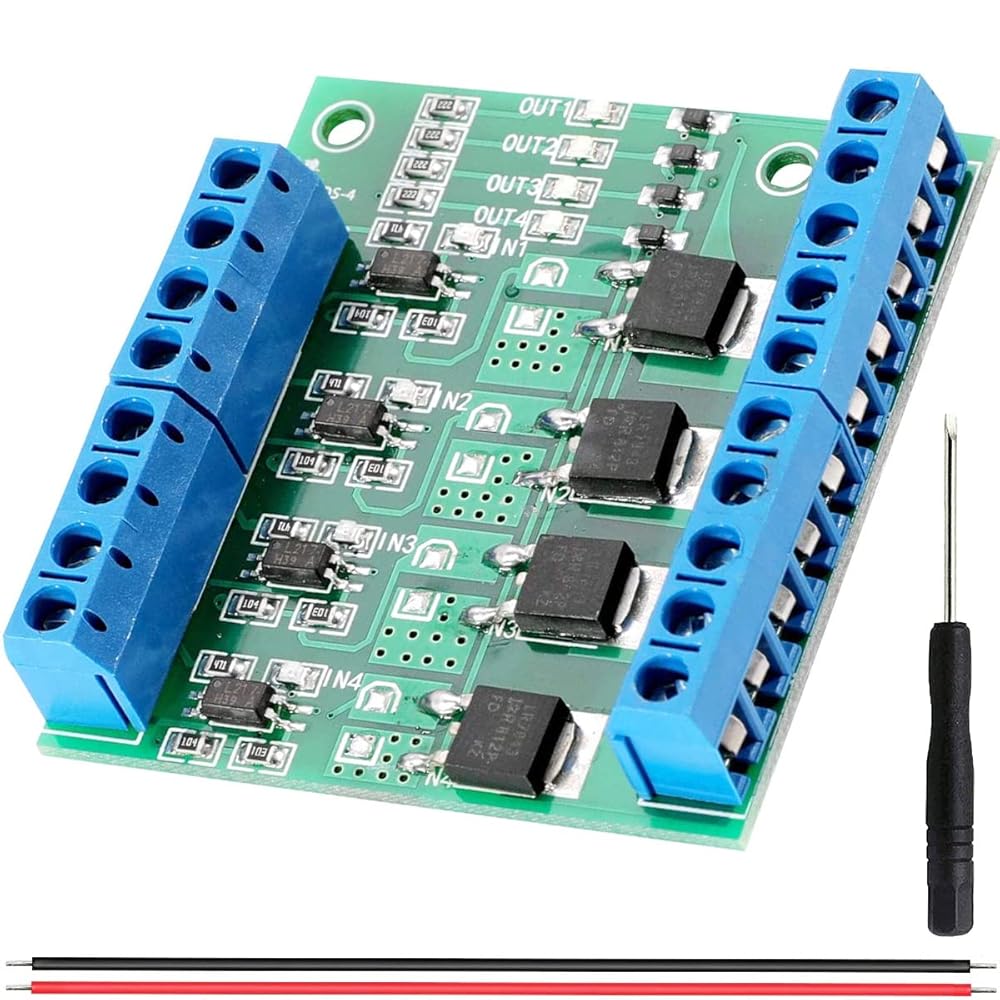

1 x 4 Channel Drive Module
1 x Red and black cable
1 x Screwdriver
