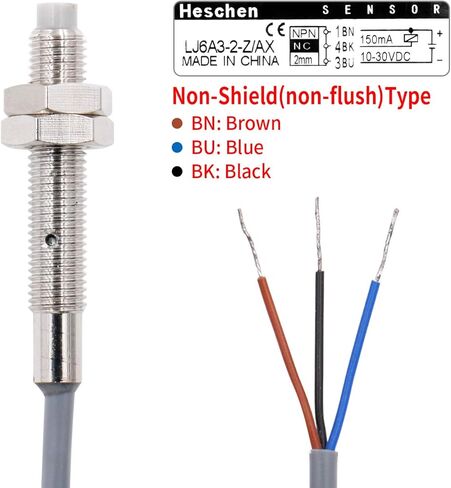

M6 Inductive Proximity Sensor Switch Non-Shield Type LJ6A3-2-Z/AX Detector 2mm 10-30VDC 150mA NPN Normally Closed(NC) 3 Wire

Special Features

Mounting Hole Diameter: 6mm; Cable length: 200cm/78"
Detecting Distance: 2mm±10%; Set distance: 0-1.6mm
Output Type: NPN NC(Normally Closed); Non-Shield(non-flush)
Current Output: 150mA; Working Voltage: 10-30 VDC
Detect Object: Magnetic Metal

Description

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
Used in common places with medium enviroment resistance
Red LED indicates that it's available to detect the sensor operation state
Economic and simple operation
Widely used, can be substitution of min-type switch and limit switch
IP 67 protection
