BestParts 5pcs Inductive Proximity Sensor M12 LJ12A3-4-Z/BX Normally Open Detection Approach Switch 4mm NPN NO 3 Wire DC 6V-36V

KWD 7
Brand
BestParts
Category
Sensors
Weight
216 g
– 1 +

Special Features

  • Inductive proximity switch type: LJ12A3-4-Z/BX, NPN NO. Detecting Distance: 4mm, Diameter: 12mm.
  • Supply Voltage: 6-36VDC, Current Output: 300mA, Frequency: 500Hz.

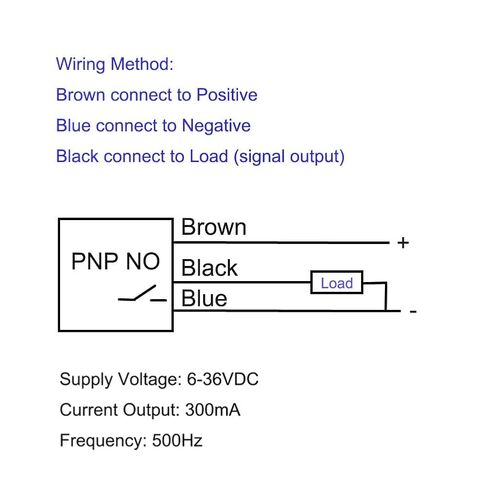

  • Wiring Method: 3 Wire (Brown, Blue, Black), Cable Length: 1.2M. Brown connect to Positive, Blue connect to Negative, Black connect to Load (signal output).
  • Detection Object: Metal. When proximity switch is close to some target object, it will send out control signal.
  • We are the professional proximity sensor switch manufacture.Our products have been tested before sent to you .You will receive 5 pcs LJ12A3-4-Z/BX inductive proximity sensor switches.Ensure it is compatible with your machines and check pictures for more details.

Description

Product Description：
Product Name:Inductive Proximity Switch
Model: LJ12A3-4-Z/BX
Detecting Distance: 4mm
Supply Voltage: DC 6-36V
Response frequency:500Hz
Output method:NPN, NO(Nomal Open)300mA load
Wire Type: 3 Wire (Brown, Blue, Black), Cable Length: 1.2M
Detection Object: Metal
Level signal: Low level, Response time: Below 2MS
Working Temperature: -25℃ ~ +70℃
Shell Material: Copper, Probe Material: ABS
Protection grade: IP65
Hysteresis:

Difference between normally open (NO) and normally closed (NC):
Normally open (NO) is the usual state of the signal output line is disconnected state, no signal output, when sensed to the object is closed, the output signal.

Normally closed (NC) is the usual state of the signal output line for the closed state, continuous signal output, when the sense of the object is disconnected, close the signal.
