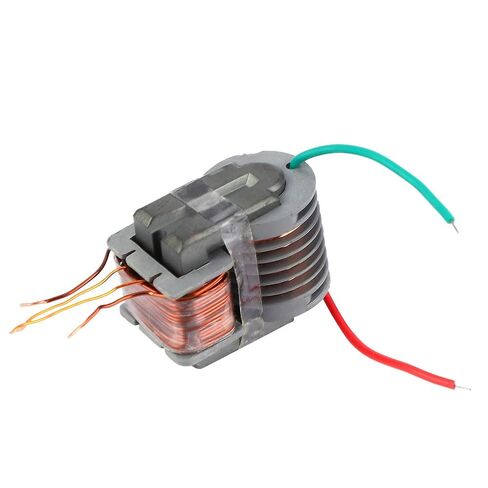

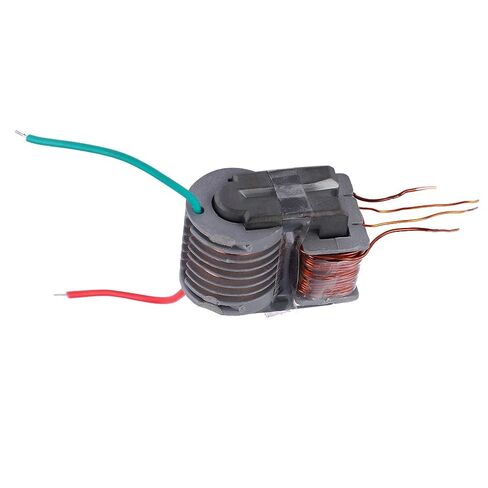

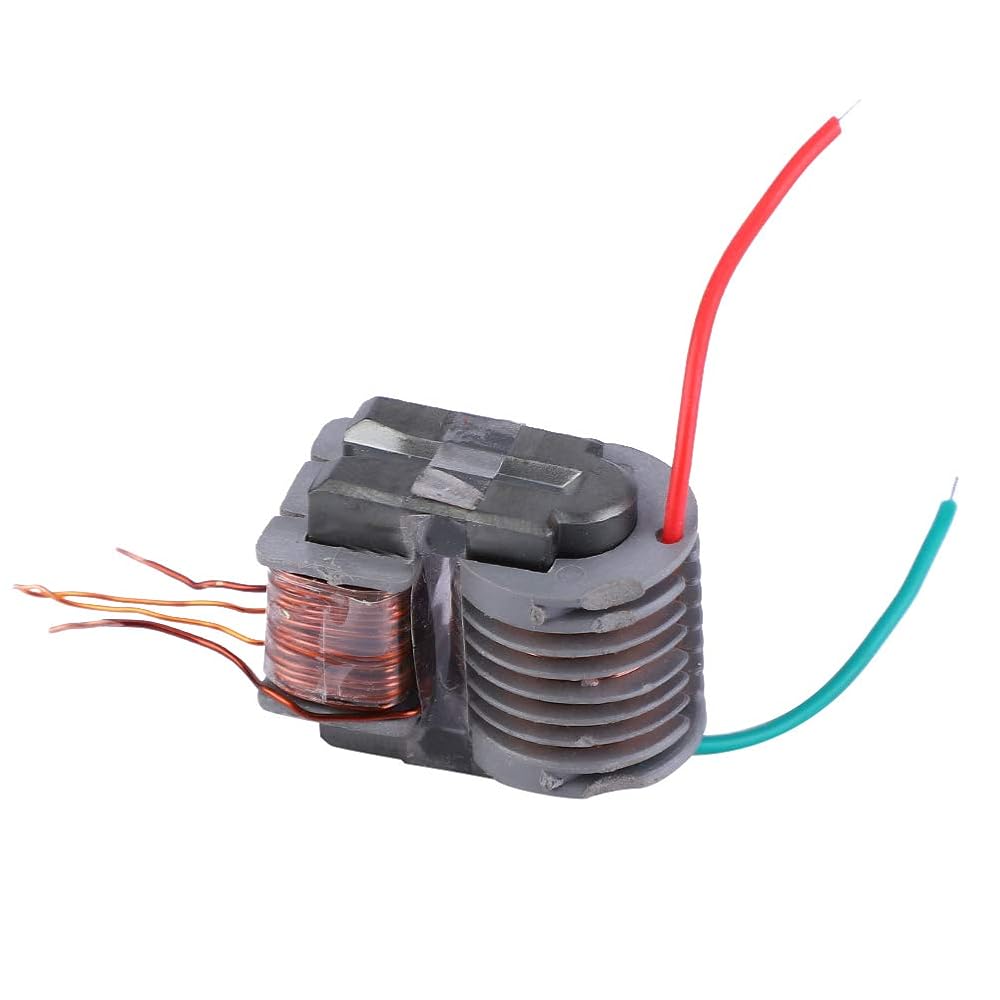

High Voltage Transformer 3.7V-4.2V to 15KV Boost Step Up Power Module Generator Neon Transformer

KWD 2.500
KWD 3
Brand
LiebeWH
– 1 +

Special Features

  • Made of quality material, which is and for long time use.
  • For middle school science experiments, electronic instruments, negative ion generator, science and small production.

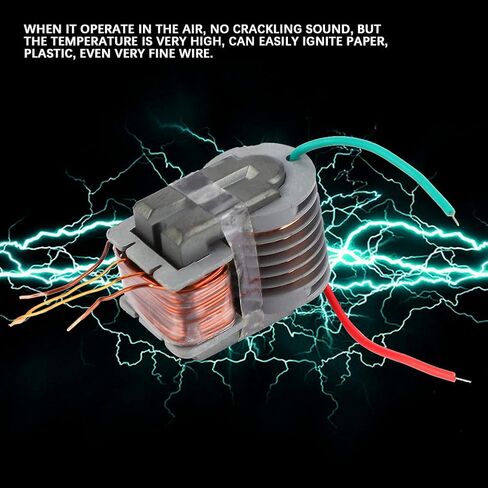

  • When it operate in the air, no crackling sound, but the temperature is very high, can easily ignite paper, plastic, even very fine wire.
  • The transformer primary has two windings, one main winding and one feedback winding.
  • ​The two thick and fine coiled copper wires are the positive poles, which are respectively the main winding tail and the feedback winding head, connected to the positive poles of the power supply.​

Description

Specification:
Input Voltage:3.7V-4.2V
Current: ≤2A
Output Voltage: ≤15KV
Input Current: ≤0.4A
High voltage ignition distance: 0.5-1cm/ 0.2-0.4in
Size: Approx. 25*20*15mm/1*0.8*0.6in

Package List:
1 * High Voltage Pulse Generator

Note:
The transformer's high-voltage winding is wound on the inner layer, which is a segmented framework and encapsulated by resin. The low-voltage winding is on the outer layer. Please do not mistake the winding way of the high-voltage winding and low-voltage winding of this transformer.
