Product Description
Specification:
Condition: 100% Brand new

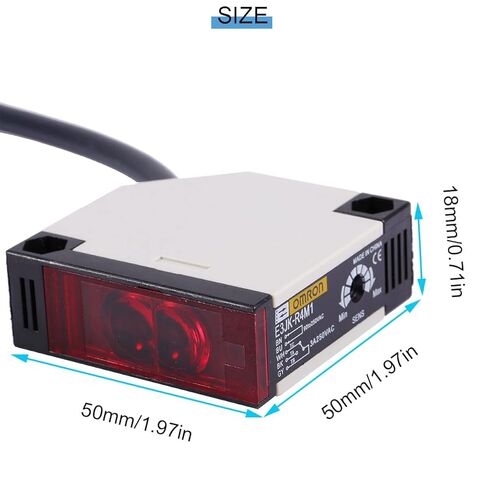

Model: E3JK-R4M1
Detection Method: Specular reflection type
Detection Distance (adjustable): 3500mm
Detection Object: Opaque objects above dia. 60mm
Number of Wires: 5 (black, white, brown, gray, blue)
Wire Length: 1.5 Meters
Light Source Type: Transmitting tube
Induction Method: Specular reflection
Protection Level: IP65
Housing Material: ABS Freproof
Control Output: 30VDC 3A Impedance load
Current Consumption: 10mA or less
Response Frequency: 500Hz
Indicator Light: Action indicator (red LED)
Temperature Effect: -15 ~ +70
Impact Resistance: 500m/s2 (50G) X, Y, Z 3 times in all directions
Ambient Temperature: -25 ~ +70, when stored: -30 ~ +80
Ambient Humidity: 35-95% RH, when stored: 35-95% RH

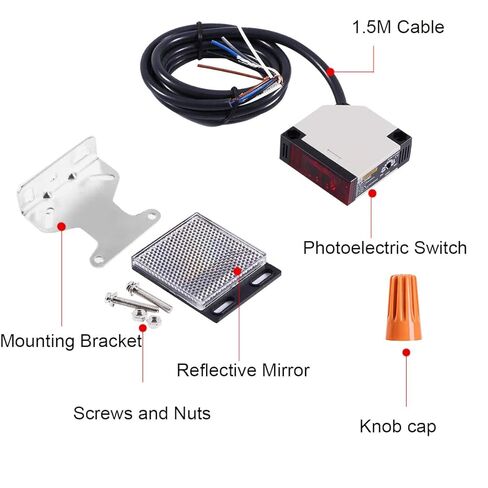

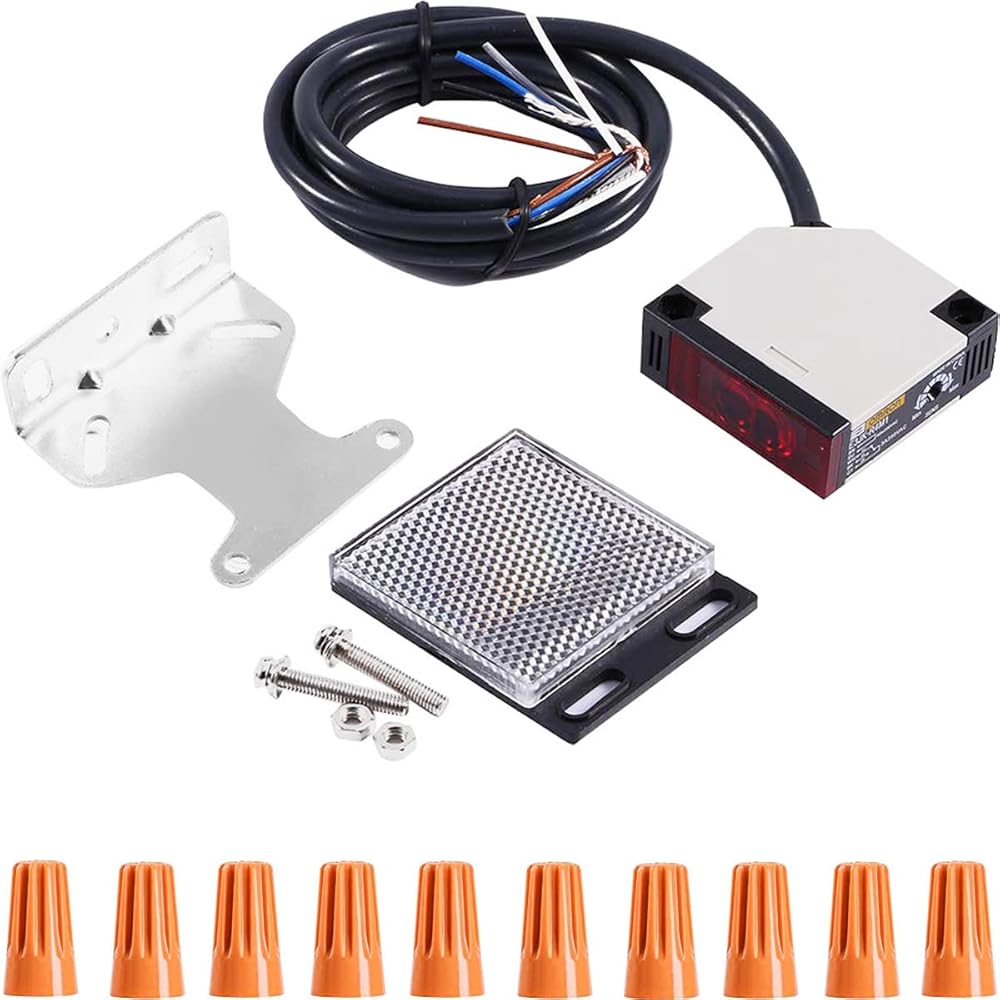

Package Includes:
1 x E3JK-R4M1 Photoelectric Switch
1 x Reflector Plate TD-08
1 x Bracket
2 x Screw
2 x Nut
10 x Knob cap
