Specification:
The flexible thin film pressure sensor is composed of polyester film of excellent comprehensive mechanical properties, high conductive material and nano-scale pressure sensitive material; the top is a flexible film and pressure sensitive layer , the bottom is a flexible film and conductive circuit .Both are glued by double-sided adhesive and the isolation sensitive zone.When there is pressure on sensitive area, the disconnected circuit on the bottom will be connected by top pressure-sensitive layer, and the output of the port changes along with pressure.

Features:
The type pressure sensor is a flexible thin film sensor whose decreases along with the pressure increases.
Single sensitive area pressure sensor is equivalent to a dual port variable whose is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting.
The pressure sensor supports static/dynamic pressure sensing, and has speed.
Made of material, the sensor is and has long service life.
Widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and so on.

Specification:

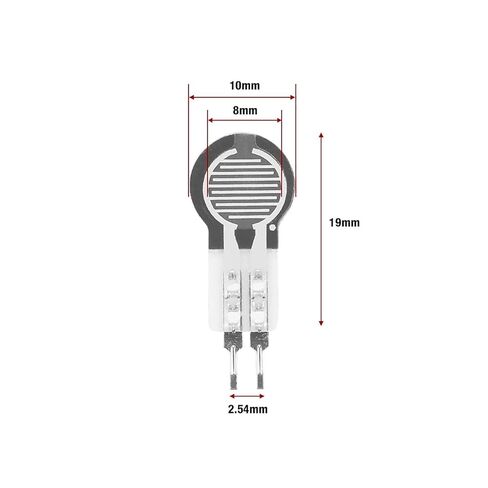

Model: DF9-16
Thickness: 0.4 mm
force: 20 g, triggered when is less than 200 k? by default
Pressure sensing range: 20 g ~ 2 kg
Pressure action mode: Static or dynamic (frequency within 10 Hz)
Non- resistance: More than 10 M?
Activation time: less than 0.01 S
Operating temperature: -40 ? ~ +85 ?
Lag: +10%, (RF+ - RF-)/FR+, 1000g force
Response time: Drifting:
Weight: 1g / 0.04oz (approx.)

Package list:
2 * Pressure Sensors
