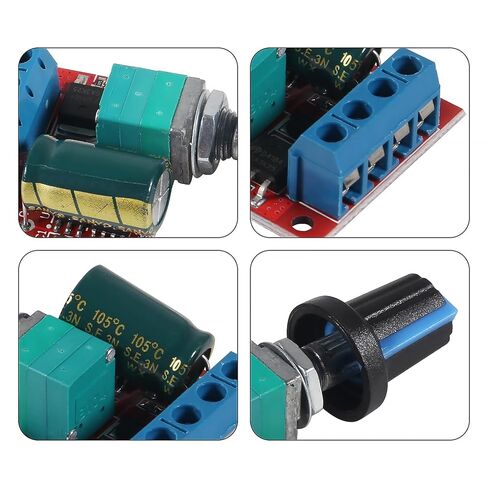

15pcs 5A Motor Speed Controller Module Mini DC Motor PWM Speed Controller Switch Control Controller Switch LED Dimmer 3V 6V 12V 24V 35V Max 90W

KWD 6.500
Brand
XIITIA
Weight
255 g
– 1 +

Special Features

  • ★Operating Voltage: DC5V-35V; Quiescent Current: 0.015A (standby state)
  • ★Default disconnection of short circuit point, suitable for 5-35V input.
  • ★Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
  • ★Mini DC 6-35V 5A PWM Motor Speed Controller. Wide voltage DC motor speed controller, PWM duty cycle: 1% -100%.
  • ★Mini wide voltage DC motor governor adopts the latest low voltage drive technology, the current is up to 5A, the maximum voltage is 3-35V (3-9V input needs short circuit), and it is equipped with self-recovery fuse, stable performance, also suitable for LED Dimming.

Description

Specifications:
Operating Voltage: DC3V-35V
Control Power: 90W (maximum)
Quiescent Current: 0.015A (standby)
PWM Duty Cycle: 1% -100%
PWM Frequency: 10 kHz
Size: 24 x 30mm/0.94 x 1.18"

Notes:
Mini DC motor governor, But also applies to LED dimming.
Wide voltage DC motor speed controller, PWM duty cycle: 1% -100%.
By screwing the potentiometer, you can turn off power supply output.
High voltage and high current resettable fuse, overcurrent automatic disconnection, power off for cooling for a few seconds fuses automatic recovery.
Default disconnection of short circuit point ,it is Applicable to 5-35V input voltage;If connect short circuit point,it is suitable for low voltage 3-15V input.
