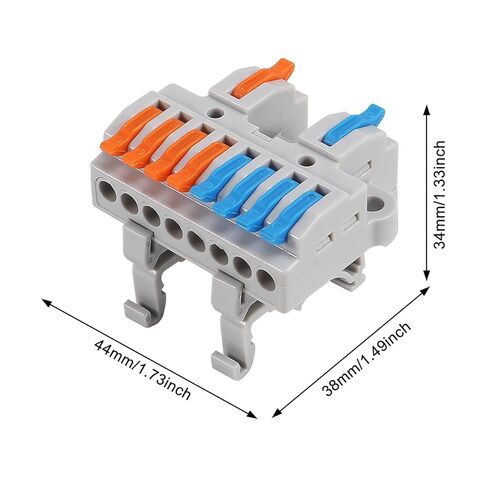

AITRIP 10PCS DIN Rail Terminal Blocks 28-12AWG Quick Wiring Cable Terminal Blocks for Circuit Inline Splices DIY Push-in Conductors Wire Connectors with Guide Rail Clamp (2 in 8 Out)

KWD 7
Brand
AITRIP
Color2 in 8 out
– 1 +

Special Features

  • Electrical wire connector can connect solid wire (AWG28-12), stranded wires (AWG28-12) and flexible wires (AWG28-14).
  • The shell is made of nylon PC material, which has effective flame retardant, insulation, anti-corrosion, anti-aging and anti-electrocution properties
  • Lever connectors are widely applied for motor, electrical control, power supply, home appliance, machinery and other electrical connections.
  • Support accessing hard wire with a diameter of 0.7mm ²- 4.0mm ²， Flexible wire diameter 0.7mm ²- 2.5mm ².
  • Widely used in distribution boxes, control cabinets, switchgear, complete sets of equipment, machinery lighting, electrical control, power supply, sockets, switches, machinery and other wire connection parts and home improvement

Description

Feature:
Lever Wire Splicing Connectors：
Rated voltage:600V
Rated current:32A
Shell material:Flame retardant PA66
Connection method: 2 input 8 output
Stripping length:Around 10mm
Connection material: Copper
Applicable Range: 0.75-2.5(4)mm2
DIN-Rail Mounting

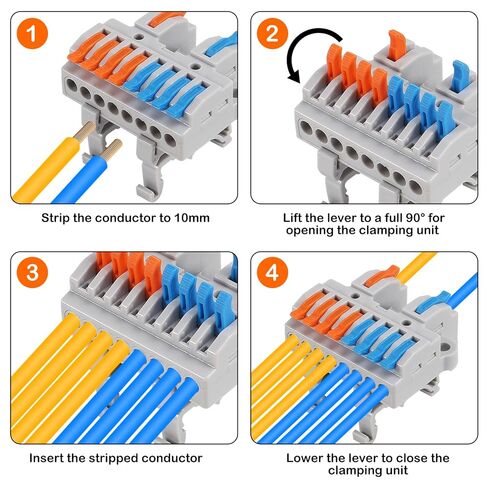

Using way:
1:Open the housing of wire to 0.39inch(10mm).
2:Push the levers to 90°and insert the wire lead.
3:Press the lever to close the clamp.Wiring completed.
Package: 10PCS (2 in8 Out)
