SS12F44 & SK12D07

KWD 3.500
Brand
DAOKAI
Weight
40 g
StyleSS12F44 & SK12D07
– 1 +

Special Features

  • SS12D10 Specification: Type: 1 Pole 2 Throw; Rated Voltage: AC 125V; Rated Current: 2A
  • SS12F15 Specification: Type: 1 Pole 2 Throw; Rated Voltage: DC 50V; Rated Current: 0.5A; Contact Resistance: 30m ohm Max; Insulation Resistance: 100m ohm Min at 500V DC
  • Material: Vertical Slide Switch are made of high-quality plastic and metal. The workmanship is excellent, and the mechanical life is not less than 10000 times.
  • Application: Widely used for small power electronic projects, electronic toys, audio equipment, electronic musical instruments, lighting dimming control, etc.

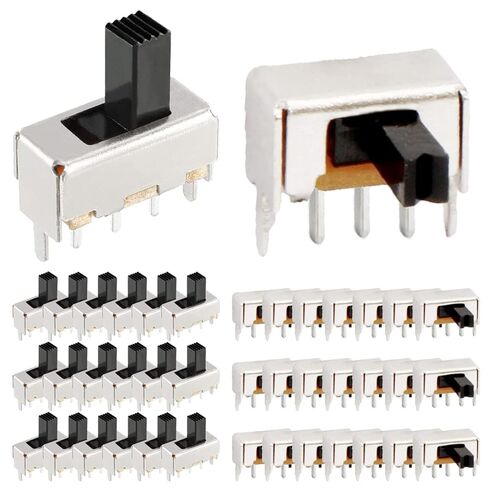

  • Package Content: The package comes with 20 x SS12D10 Vertical Slide Switch, 20 x SS12F15 Vertical Slide Switch

Description

Description:
Model: SS12D10
Type: 1 Pole 2 Throw
Rated Voltage: AC 125V
Rated Current: 2A
Sliding Knob Length: 5mm/0.19inch
Switch Size: 12.7 X 6.6 X 13.2mm / 0.5 X 0.26 X 0.52inch (LxWxH)
Soldering Pin Size: 6.8 X 1.3 X 0.8mm / 0.27 X 0.05 X 0.03inch(LxWxH)

Model: SS12F15
Type: 1 Pole 2 Throw
Rated Voltage: DC 50V
Rated Current: 0.5A
Contact Resistance: 30m ohm Max
Insulation Resistance: 100m ohm Min at 500V DC
Withstand Voltage: AC 500V

Package Included:
20 x SS12D10 Vertical Slide Switch
20 x SS12F15 Vertical Slide Switch
