Description:

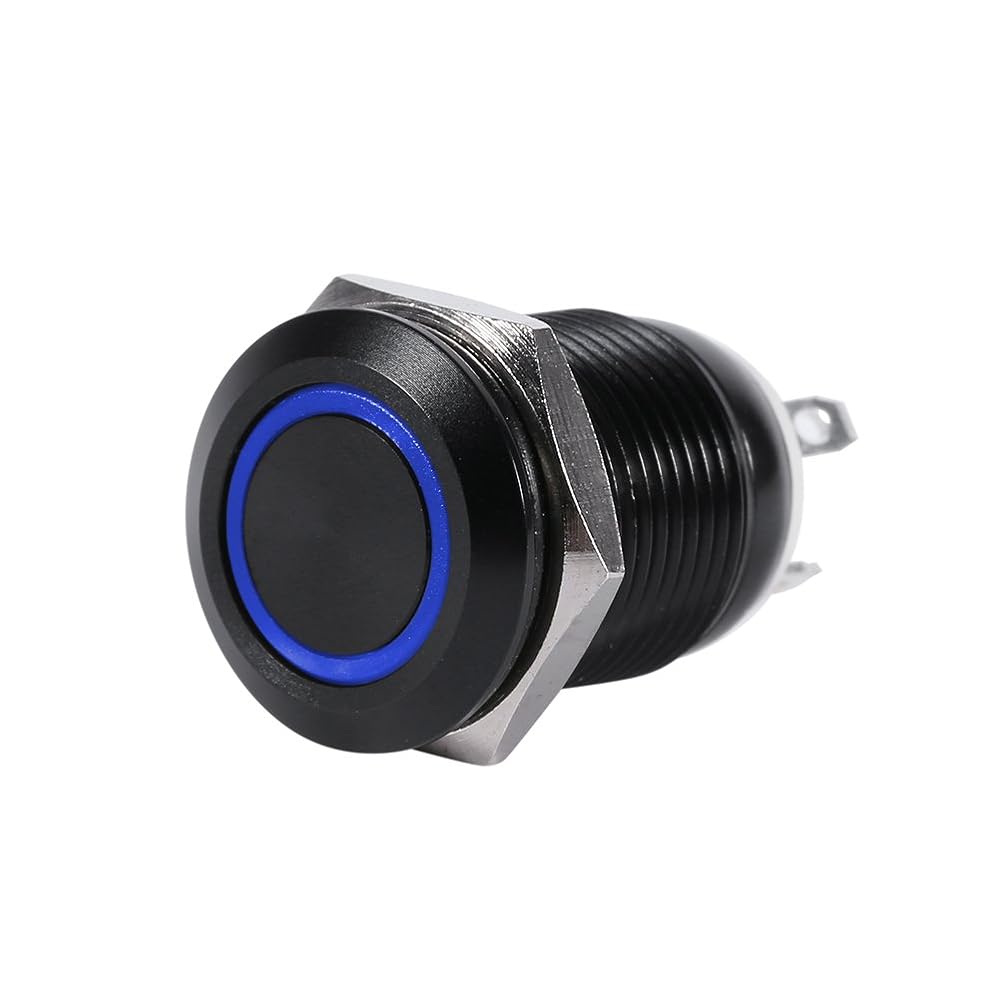

This is a LED power push button switch. It is a switch made of industrial strength copper and components, and its metal button head can withstand longstanding press, pretty in using. It adopts rubber ring and hexagonal nut fixed, making it anti dust and waterproof, which is very great for outdoor use. The light of the LED ring will help you navigated in the dark and give a sophisticated look. Wish you a cheerful operation with our product.

Features:
1. Made of brass plated material, strong and .
2. High-grade appearance and nice touch feeling.
3. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use.
4. Copper plating silver pin terminals for good conductive properties.
5. Momentary type, push it-on, release it-off.
6. Metal button head for longstanding press.

Specifications:
Material: Brass plated
Shell Color: Black
LED Color: Red, green, blue, white (optional)
Switch Rating: 2A 36V
Switch Combination: 1 NO
Lamp Type: Ring LED
LED Voltage: Red LED - 2V,Green, blue, white LED - 3V
(When the voltage is higher than 2V or 3V, you need to add external resistor.)
IP Rating: IP65, IK08
Screw Thread Width: 12mm / 0.47""
Dimension: 1.3 x 2.1cm / 0.51"" x 0.83""
Package Weight: Approx. 6g
Operation Type: Momentary type (push it-on, release it-off)

Package Included:
1 x LED Button Switch
