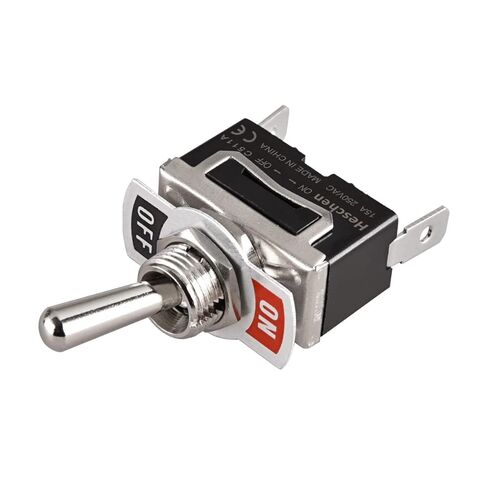

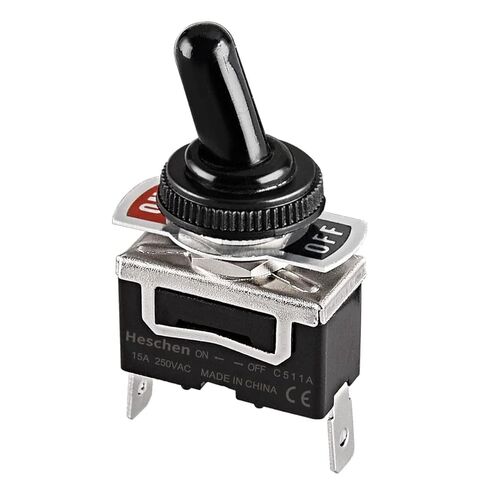

Metal Toggle Switch, C511A, SPST, Maintained, ON/Off 2 Position, 15A 250VAC, 2 Tab Terminal, CE, with Waterproof Cover (1)

KWD 2.500
– 1 +

Special Features

  • Rating: 250VAC, 15Amp
  • Type: SPST ON/OFF Maintain
  • Mounting hole size: 12mm
  • 2 tab terminal (1/4" width)
  • Body Size: 28mm x 15mm

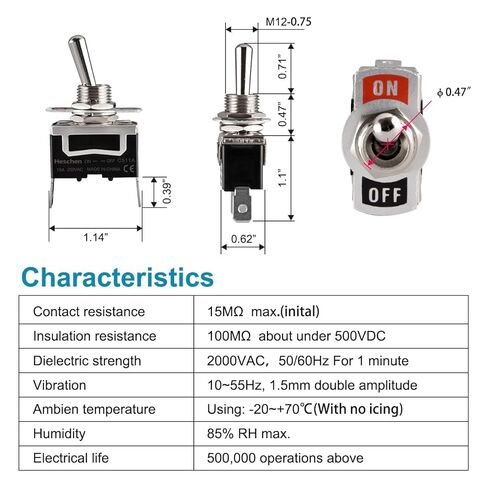

Description

Contact resistance: 15Mohm
Insulation resistance: 100Mohm under 500VDC
Dielectric strength: 2000VAC, 50-60Hz for 1 minute
Vibration: 10-55Hz, 1.5mm double amplitude
Ambien temperature: -10C-80C
Mechanical Life:500,000
Electrical Life: 100,000
CE listed
