5-Piece 40/30 amp 12VDC Waterproof Relay with Harness 5-pin, Heavy Duty 12/16AWG tinned Copper Wire, 12VDC Waterproof 5-pin SPDT Pure Copper Coil Relay.

KWD 10
KWD 11
Brand
Losato
– 1 +

Special Features

  • [Product Description]:12VDC(Max.14V) Waterproof 5-pin SPDT(single pole double throw) pure copper coil relay, contact switching voltage 12V, coil power 1.8W, rated current 40A, with 40A high switching capability.
  • [Harness specification]: Heavy 12/16 AWG harness. Black - 16AWG Pin85(grounded), white - 16AWG Pin86(triggered), red - 12AWG Pin30 (VDC) Yellow - 12AWG Pin87a(output N/C), blue - 12AWG Pin87(output N/O).
  • [Waterproof and dust-proof] : The connection between the relay wiring harness and the socket is made of high-quality rubber ring connection package, so that it is waterproof and dust-proof, and effectively protects the internal line.
  • [Material] Losato5 needle waterproof relay adopts pure copper core cable, tinned copper wire, with good electrical conductivity and stable performance. The relay kit is made of high grade flame retardant material, which is not easy to fuse at high temperature, ensuring safe use and long service life.

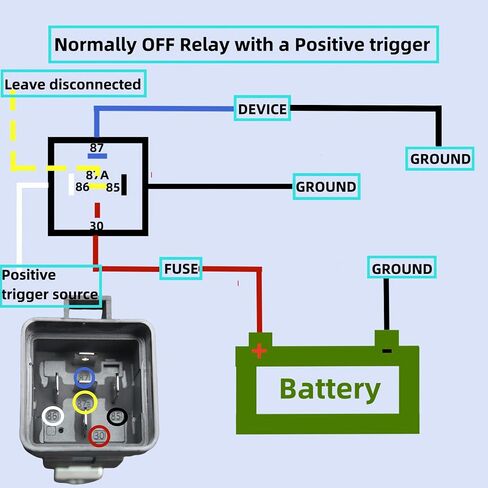

  • [Easy installation] : Fixed metal holes, easy installation, just make sure to follow the wiring diagram.

Description

5-piece 40/30 amp 12VDC waterproof relay with harness 5-pin waterproof relay, heavy duty 12/16AWG tinned copper wire, 12VDC waterproof 5-pin SPDT pure copper coil relay.
