20 Inch Fat Tire Rear Wheel Motor 48V 1500W Electric Conversion Kit with KT 35A Controller LCD3 Display Riding

KWD 213.500
Brand
SPYMINNPOO
Category
Bicycles
Weight
11.5 kg
– 1 +

Special Features

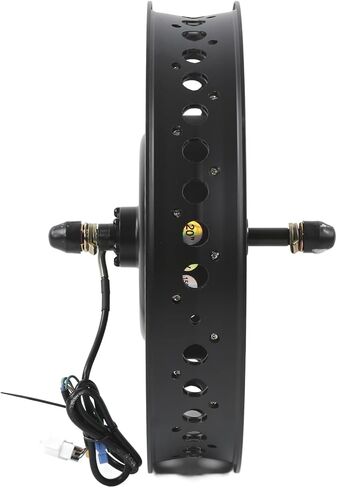

  • [Motor Wheel] Motor wheel is made of aluminum alloy rims and has undergone fine processing, which effectively strengthens the edges of the rims, which is light and high end, with strong load bearing capacity and far more comfortable than other types of motors.
  • [Metal Controller] Controller shell uses high quality aluminium alloy metal with design, which has a good heat dissipation function and can the internal circuit to avoid thermal overload.
  • [Stable And Sensitive Control] Brushless motor controller can provide stable speed and sensitive braking and direction change control. High performance wires and interfaces are , ensuring low failure rate in long term use.
  • [LCD3 Display Meter] LCD3 meter can display many useful data, such as battery display, backlight display, headlight display, brake display, ambient temperature, motor temperature, one way time, total travel time, current speed, average speed, maximum speed, riding distance, total distance, 6KM/H thrust assist, function, etc.
  • [Wide Application] 48V 1500W electric bike conversion kit suitable for rear wheel conversion of beach, off road, snow bike, easy to maintain. The conversion of electric beach, off road, snow bike greatly improves the riding pleasure. It is suitable for cyclists who like to challenge, and DIY modify beach, off road, snow bike.

Description

How to Use:
1. Yellow, green, blue single large end wire: Motor Wire
2. Red blue black green yellow double row five wire port: Motor Wire
3. Red and black single large end wire: Power Line
4. Red, blue, black, green and yellow single row five wire port: LCD Meter Wire
5. Red and blue wire (two): Power Off Brake Lever Wire
6. Red, black white wire: Thumb Throttle Wire
7. Brown black yellow wire: Power Assisted Sensor Wire
For specific instructions, please refer to the manual.

Specification:
Item Type: Electric Bike Tire Conversion Kit
Material: Stainless Steel + Aluminum Alloy + Plastic
Product Color: As Pictures Shown
Controller Box Size: Approx. 193x83x42mm / 7.6x3.3x1.7in
Motor Opening Size: 170mm / 6.7in, 190mm / 7.5in
Motor Wheel Applicable Tire Size: Approx. 50.8cm/20.0in
Product Weight: Approx. 11150g / 393.3oz
Motor Type: Rear Drive Threaded Freewheel Motor
Motor Voltage: 48V
Motor Power: 1500W
Connector Type: Ordinary Connector
Controller Rated Voltage: DC 36V/48V
Controller Rated Current: 17A
Controller Maximum Current: 35±2A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
Controller Low Voltage Keep DC 30/40±0.5V

Package List:
1 x Rear Drive Motor Wheel
1 x Controller
1 x LCD3 Meter
1 x Meter Mounting Bracket
4 x Meter Mounting Bracket Gasket
2 x Meter Mounting Bracket Screw
1 x Meter Manual
1 x Thumb Throttle
2 x Power Off Brake Lever
1 x 8C Power Assist Sensor
5 x Cable Tie
1 x Winding Tube
1 x Controller Bag
1 x Controller Wiring Manual
