1. Intelligent leveling, intelligent compensation of Z‑axis height, making leveling more intelligent and simple
2. This 3D printer sensor have accurate measurement with small error, which bring high leveling accuracy
3. The product equipped with patch positioning sensor, therefore get higher consistency

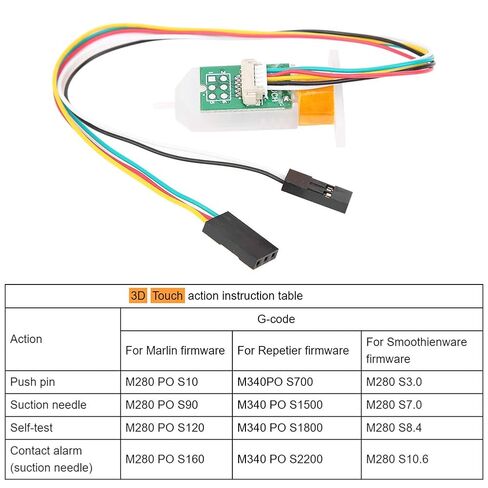

4. 3D Touch automatic leveling sensor is a device that uses Hall effect to achieve leveling, which possess high accuracy and fast respond
5. The position of the point can be obtained by touching the point on the hot bed, and printing can be achieved even when the is uneven

Spec:
Item Type: 3D Touch Auto Bed Leveling
Voltage: 5V
Current: 15ma
Maximum (1 value) Current: 300mA
Shell Material: PC
Shell Color: White translucent
Connection:
3pin:
Green (-, GND)
Red (+5V)
Orange ( line)
2pin:
Black (-, GND)
White (Zmin)
Size:
Approx. 11.54mm / 0.5in
Approx. 5.77mm / 0.2in
Approx. 9mm / 0.4in
Approx. 18mm / 0.7in
Approx. 2 ~ 3.2mm / 0.08 ~ 0.13in
Approx. 26mm / 1in
Approx. 9.7mm / 0.4in
Approx. 7.7mm / 0.3in
Approx. 36mm / 1.4in
Approx. 26.3mm / 1in
Approx. 19.5mm / 0.8in
Approx. 5.5mm / 0.2in
Maximum: Approx. 11mm / 0.4in(±1mm)
Approx. 13mm / 0.5in
approx.15mm / 0.6in
Approx. 8.2mm / 0.3in(±0.2mm)

PackageList:
1 x Sensor
1 x Wound Terminal
1 x Line
2 x M3 Nut
2 x M3 Screw
2 x Terminal
