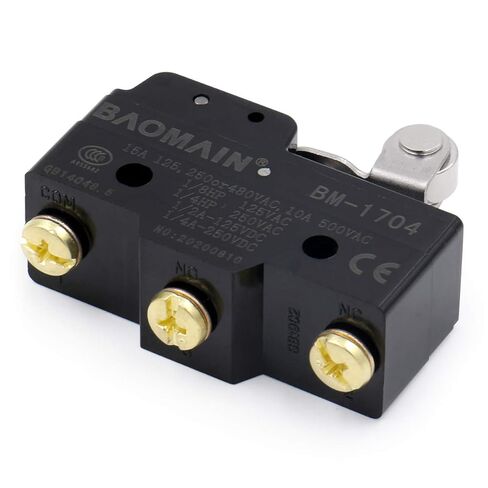

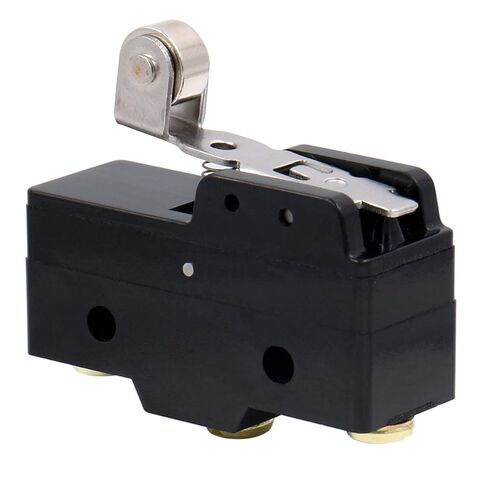

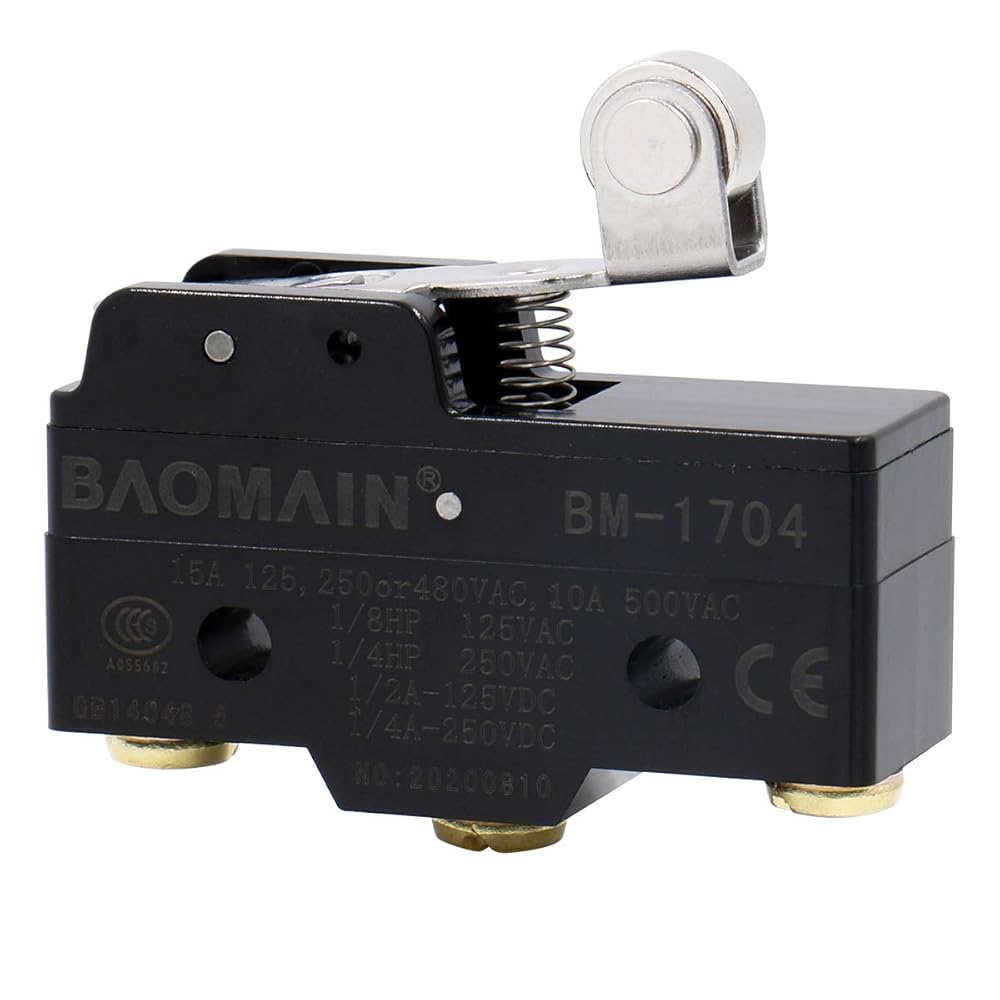

Baomain Roller Lever Normally 250VAC 15A Micro switch BM-1704 CE

KWD 3.500
Brand
Baomain
Weight
42 g
– 1 +

Special Features

  • Rated Voltage: Ue 250V 220V Ie 15A 0.3A; Mechanical life: 10000000 times; Electrical life: 500000 times
  • Contact Resistance: Max 15M Ohm (Original Value); Insulation Resistance: Min 100m Ohm (At 500V)
  • Operating frequency: 240 Times / Min

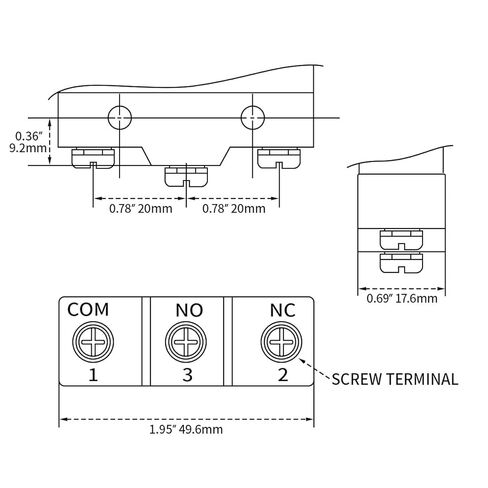

  • Size: 5 x 1.8 x 2.8 cm / 1.97 x 0.7 x 1.1" (L * B * H)
  • Ambient temperature: Operation: -10 °C to + 80 °C; Storage: -15 °C to + 80 °C

Description

Features:

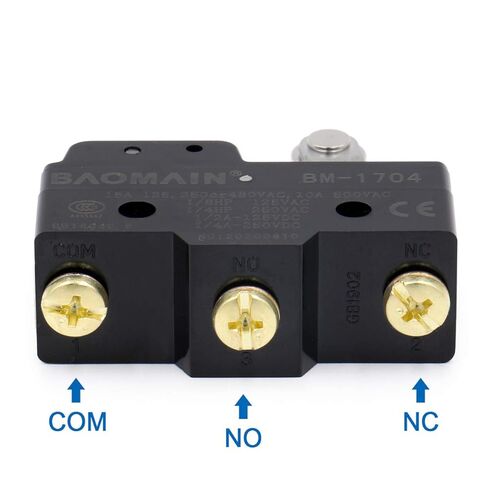

1 NO + 1 NC contact configuration, 3 screw terminals, can be for AC-DC control circuits.
This limit switch can be used for the various mechanical systems to monitor the position of the moving parts of machines and systems.
For safety circuits, the control circuit and the auxiliary circuit to the terminal protection.
Safe and reliable, small size, the products are for the general use.
