Features:

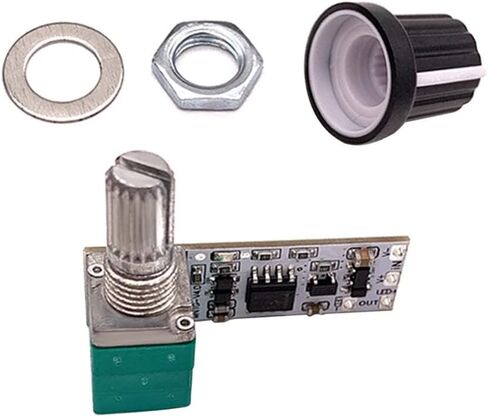

1. It is a DC3.7V-24V 4A LED Driver PWM Dimmer Module Stepless Potentiometer Circuit Control Board.
2. Smooth dimming, no stroboscopic. Lithium battery can drive, blue light indicator.
3. Constant voltage dimming, output voltage equal to input voltage.
4. With the switch. 0-100% range adjustable.
Specifications:
Model: JW-MNTG-V5.0
Power supply: DC 3.7V-24V
Output voltage: DC 3.7V-24V
Load power: ≤4A
Standby power consumption: 0 power consumption in standby mode after turning off the knob
Working mode: There is constant voltage, not constant current, the load must have resistance current limit
Work Temperature: -25℃~85℃
Work Humidity: 5%~95%RH
Size: 33.6*11*12.5mm
Package List:
1 X LED Miniature constant voltage dimmer
Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow 1-2cm slight dimension difference due to different manual measurement.
