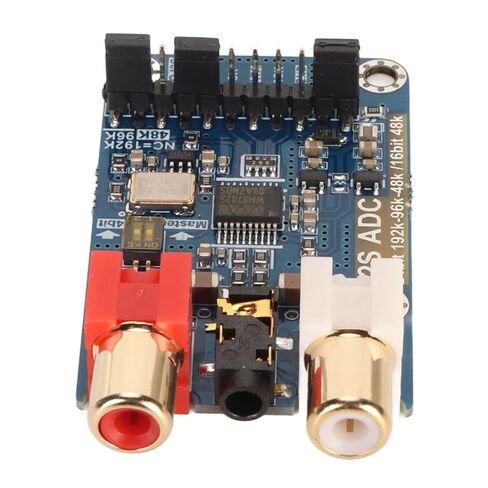

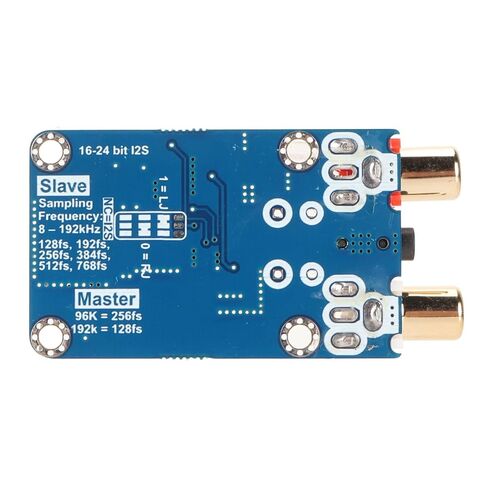

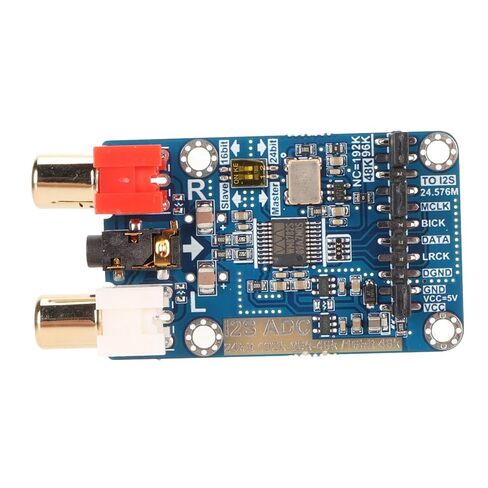

I2S ADC Audio Card Module, Lossless Digital Audio Decoder Module, Master Slave Mode Development Board, Support 24bit 192k, 24bit 96k Master Mode

KWD 7.500
KWD 9.500
Brand
Yoidesu
Weight
33 g
– 1 +

Special Features

  • I2S : I2S ADC audio capture card module supports host slave mode to turn analog into I2S .
  • MASTER MODE: Audio 12S capture card module can be set to 24bit 192k and 24bit 96k master mode.
  • SLAVE MODE: Audio capture card module can be set to 24bit 192K, 24bit 96K, 24bit 48K and 16bit 48K slave mode.
  • NOTE: Default host output mode, the audio input can be automatically converted to 24bit 192K/96K I2S for output after power on.
  • INPUT : Audio capture card module development board supports 3.5mm or input, default 6dB amplification effect.

Description

Spec:
Item Type: Audio Capture Card Module
Material: PCB
Host Mode:
1.24bit 192k Host Mode Can Be Set Up.
2. 24bit 96k Host Mode Can Be Set Up
Slave Mode:
1. 24bit 192K Slave Mode Can Be Set.
2. 24bit 96K Slave Mode Can Be Set.
3. 24bit 48K Slave Mode Can Be Set.
4. 16bit 48K Slave Mode Can Be Set.

How to Use:
Simply set it up manually, no programming, no driver setup required.

PackageList:

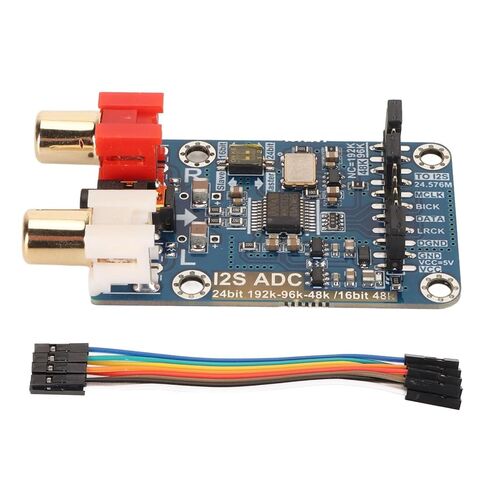

1 x Audio Capture Card Module
1 x Connection Cable
