Convert Cylindrical Mechanical Locks Into An Electronic Access-Controlled Locking System.
Two Operating Modes:
① Fail Secure (NO) (Default) – When Unpowered, strike is Locked
② Fail Safe (NC) – When Unpowered, strike is Unlocked
Normally Open (NO) / Normally Closed (NC) Wiring:
① Fail Secure - Normally Open (NO) – Strike is Normally Unpowered and remains locked, Unlocks when power is added
② Fail Safe - Normally Closed (NC) – Strike is Normally Powered and remains locked, Unlocks when power is removed

Specifications:

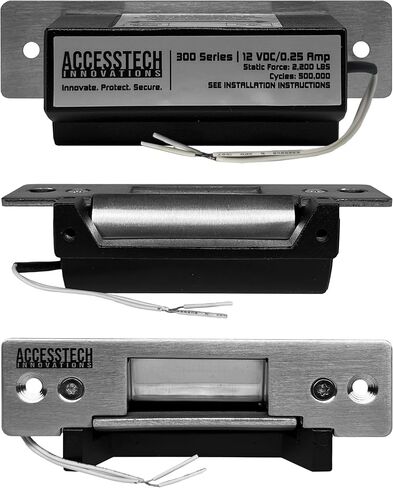

Model: 300
Operation: Normally Open (NO) / Normally Closed (NC)
Operating Power: 12VDC @ 250mA
Latchbolt Size: 5/8”
Static Strength: 2,200-lbs
Cycles: 500,000
Operating Temperature: 14°F~131°F (-10°C~55°C)

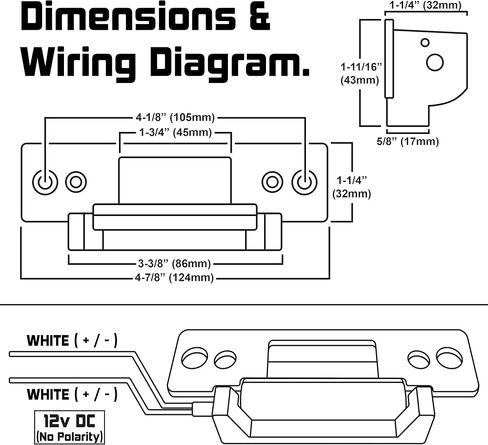

Dimensions (LxWxH): 4-7/8” x 1-11/16” x 1-1/4” (124x43x32mm)
Materials: Stainless Steel / Metal Alloy
Wiring:
White: Power (No Polarity) – Either one can be positive or negative
Diode:
Protects equipment from electromagnetic surges - Leg with White Stripe attaches to Positive Wire

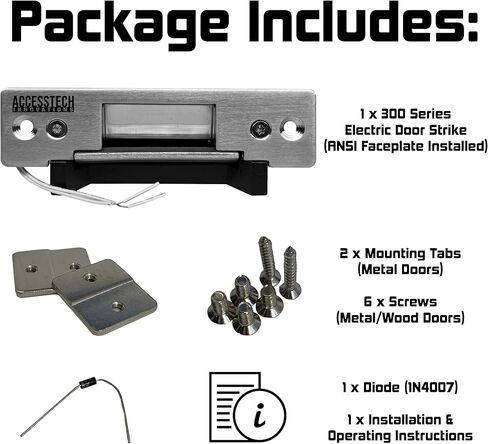

Package Contents:
1 x 300 Series Electric Strike Lock Body
1 x ANSI Standard Faceplate (Ships Pre-Installed on Device Body)
2 x Mounting Tabs
6 x Mounting Screws (4x Metal Door Screws & 2x Wood Door Screws)
1 x Diode (1N4007)
1 x User Manual

⚠ Attention: We recommend the customer checks with their local fire authority to see if any additional products are needed to comply with local fire codes. We are not responsible for improper installation of our product(s) or liable for any fees that may be incurred by not complying with the local fire authority.
