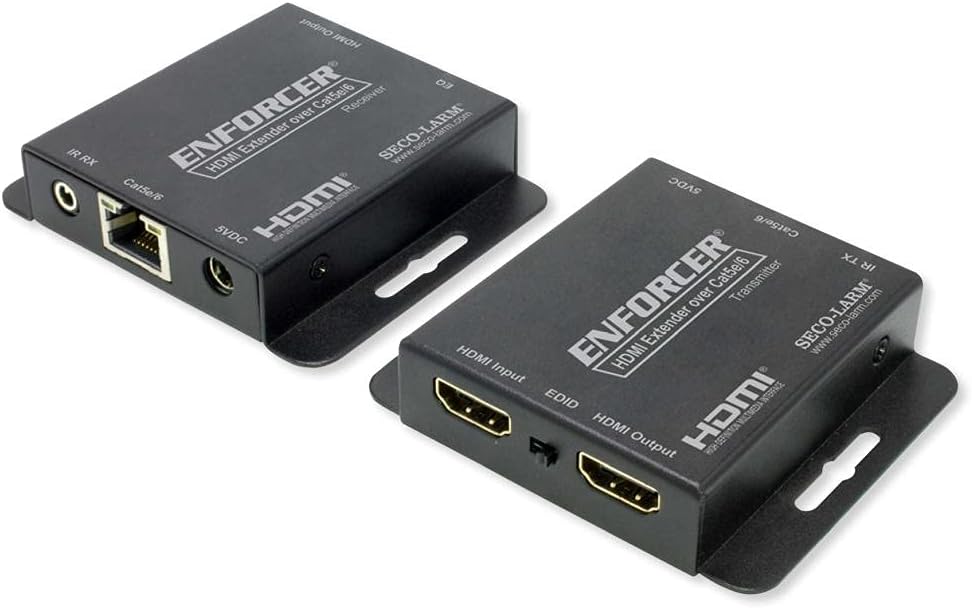

Seco-Larm MVE-AH1E1-01NQ HDMI Extender Over Single Cat5e/6, Supports Resolutions From 480i To 1080p, Plug And Play Operation, 2x5VDC Power Supplies Included
Extend HDMI over a single Cat5e/6 cable
Supports resolutions from 480i to 1080p with zero signal loss
Transmits up to 164ft (50m) at 1080p over Cat5e/6 cable
HDMI Loop output for local HDMI display
Plug and play operation – comes as a complete set
IR Pass-through for remote control extension and operation
EDID Management switch
Two (2) 5VDC power supplies included

SpecificationsInput Video Signal: 3.3V
Input DDC Signal: 5Vp-p (TTL)
Deep Color: 24-Bit
Video Format Supported: High-speed HDMI, HDCP 1.2
Audio Formats Supported: LPCM, Dolby-AC3, DTS7.1, DSD
Output Video: HDMI
Resolutions Supported: 1080p/1080i/720p/576p/576i/480p/480i
Range - 4K: Up to 164' (50m)
Video Amplifier Bandwidth: 4.95Gbps
Maximum Input Cable Length: 24AWG (15m), 26AWG (10m), 28AWG (5m)
Video Input Connector: HDMI Type A 19-pin female
IR Pass-through Frequency: 30~60 kHz
Operating Voltage: 5VDC
Power Supply: 1A@5VDC (2 Adapters) (2.1mm plug)
ESD Protection (Human Body Model): ±8kV (Air-gap discharge), ±4kV (contact discharge)
Cat5e/6 Wiring Standard: T568-B
Current Draw: Transmitter- 300mA@5VDC Receiver- 200mA@5VDC
Operating Temperature: 32°~104° F (0°~40° C)
Operating Humidity: 20~90% RH (no condensation)
Dimensions: 31/8"x11/16"x25/8" (79x17x67 mm)
Weight: 5.3-oz (150g) (Each)
Maximum Single Link Range: 1080p
