Input voltage: DC3.2V-35V
Output Voltage: DC1.25V-30V
Output Current: rated current 2A, maximum 3A (need to add heat sink), if the output power greater than 15W, combined heat sink is proposed.
Conversion Efficiency: up to 92% (output voltage higher, the higher the efficiency)
Rectification: non-synchronous rectification
Module property: non-isolated buck module

Wiring according to the instruction diagram, do not connect wrong.
This is a step-down module, the input voltage should be higher than the output voltage, can not be boosted!
Conversion efficiency is related to the voltage difference between input and output voltage and current.
Output current is more than 2.5A or output power more than 10W, and long time working, please strengthen the heat dissipation.
The module current is determined by the connected load and the output voltage itself.

Note:
Before using the module for the first time, it is important to leave the module unattended.
Before the first use, the module is not powered and not connected to the load,

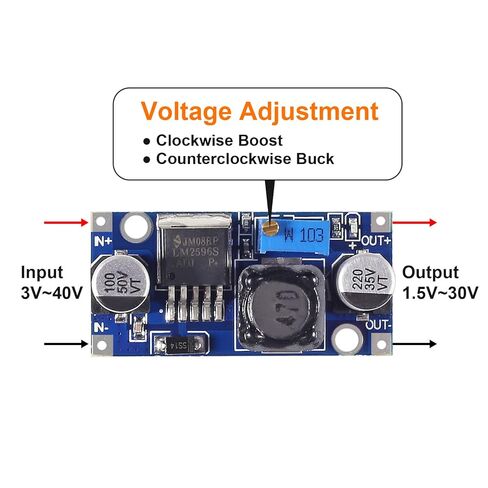

the blue potentiometer copper head of a word mouth adjustment cap (aligned with my chest) counterclockwise rotation of the potentiometer to the end (more than 30 turns) hear the ‘tah' sound,
the last on the power, and take a multimeter to monitor the module output voltage,
rotate the potentiometer to achieve the ideal voltage clockwise!

Package include:
4 x lm2596 DC-DC step-down module
