CNC Spoilboard Surfacing Router Bits 1/4'' Shank Wood Planer Bit Surfacing Bit with 2+2 Indexable Inserts, Carbide Milling Cutter Slab Flattening Planning Bit for Woodworking Engraving

KWD 18

Brand
Trvoxviq
Weight
69 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Trvoxviq 4-WING 2+2 T INSERT CNC ROUTER BIT: Shank: 1/4"(6.35mm); Cut Diameter: 1-1/4"(31.75mm) ; Total Length: 1.81''(46mm). 2+2 T wing design, resulting in a more balanced tool while running. The Router Bit comes with insert blades:12x12x2.2mm. The total length may have a 2-5mm error due to different production batches.
  • Trvoxviq planer router bit is perfect for wood slabs flattening, resurface or plane the top surface of the spoilboard. Used on soft and hard woods, particle board, MDF, plywood compact panel, laminate, acrylic and etc. Please MAKE SURE the set screws are thigtened frimly before each time use!! The holder should be clamped at least 20mm.
  • The carbide inserts of the CNC milling cutter are added with the rare precious metals TaC and TiC, resulting in the impact strength and wear resistance, higher density, better compactness, no bubbles, uniform and dense metallographic structure, makes the face cutter more durable.

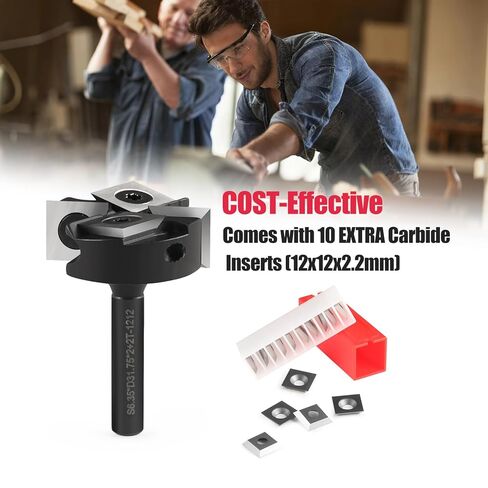

  • COST-EFFECTIVE INSERT BIT: The surfacing router bit utilizes 4-sided solid carbide inserts. All 4 edges of carbide inserts can be used, use a screwdriver to make other blade edge outside. Replace the carbide inserts when needed, instead of replacing the whole bit. Cost effective solution compared to brazed router bits and solid carbide spiral bits.
  • Wide Applications: Trvoxviq Spoilboard Surfacing bits are used on CNC and other automatic routers as well as hand-held and table-mounted portable routers. Also suitable for router sled machines, Make sure that your router sled is fully stable and squared. For planing & rabbeting MDF,Fiberboard,HDF/LDF,Balsa ,High Density Urethane (HDU Board),Plastic/Acrylic,Plywood/Chipboard,Hardwood/Softwood,Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
