10PCS AMS1117-3.3 Step Down Power Voltage Regulator Module DC 4.75V-12V to 3.3V Power Board LDO 800mA 3Pin with Cable

KWD 3
Brand
DAOKAI
Weight
31 g
Style3PIN Step Down Regulator Module
– 1 +

Special Features

  • Pruduct: Name:AMS1117-3.3 Step Down Power Voltage Regulator Module, This is a forward regulated step-down power supply module that supports DC 4.75-12V input and 3.3V fixed voltage and 0.8A current output
  • Specification: Operating junction temperature range: -40 to 125°C, welding temperature (25 seconds): 265°C, storage temperature: - 65~150°C, 3pin
  • Use: the voltage to 3.3V 800mA DC buck module is applicable for high-efficiency linear regulator published active power regulator battery charger active instrument
  • Application: Compatible with Arduino UNO MEGA2560; MSP430 Development Board; 3.3V Low power consumption MCU; FPGA/CPLD PLD Programmable Logic Systems; ARM7 ARM9 ARM11 STM32; etc
  • Package includes: You will get 10 x AMS1117-3.3 3PIN Step Down Power Voltage Regulator Module, 1 x 30pin Female to Male Cable

Description

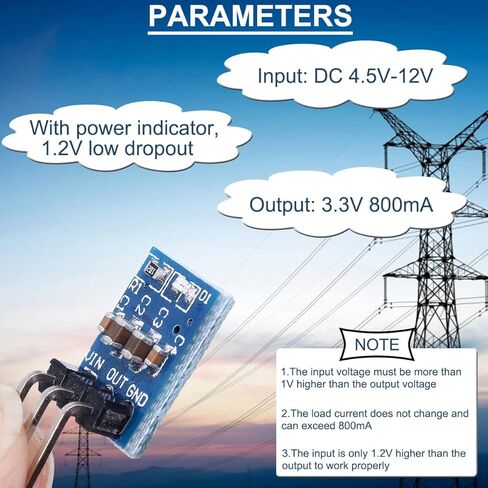

Parameters:

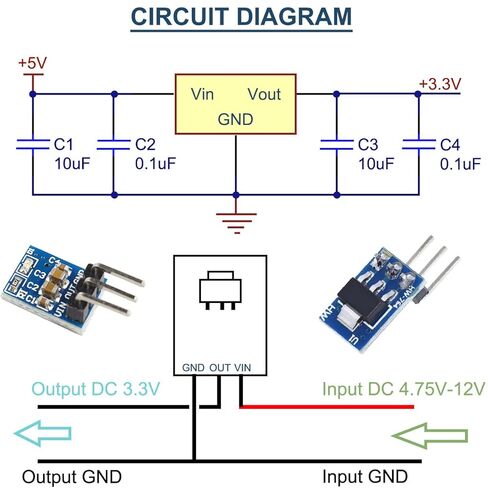

Input: DC 4.5V-12V (input voltage must be more than 1V higher than output voltage)
Output: 3.3V, 800mA (the load voltage and current can exceed 800mA without change)

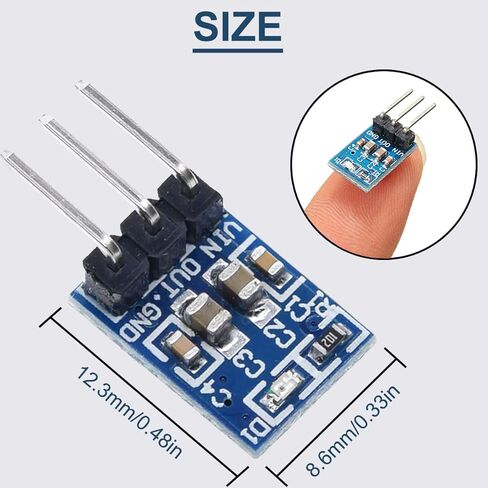

Size: 8.6×12.33mm/0.48x0.33in (fingertip size)
12V low difference: the input is only 1.2 higher than the output to work normally

Attention:
AMS1117-3.3V Buck Voltage module soldering kit only support 3.3V,800mA output, So the load current cannot exceed 800mA

Application:
This module is suitable for single-chip project design and other electronic devices that need power supply, and can also provide convenience for power expansion of some electronic designs

Package includes:
10 x AMS1117-3.3 3PIN Step Down Power Voltage Regulator Module
1 x 30pin Female to Male Cable
