POE HAT F for Raspberry Pi 5/Compute Module 5, Pi5 Power Over Ethernet HAT with Onboard Cooling Fan and Metal Heatsink, Supports 802.3af/at Network Standard, 40PIN GPIO Stack Header to Add Other HAT
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

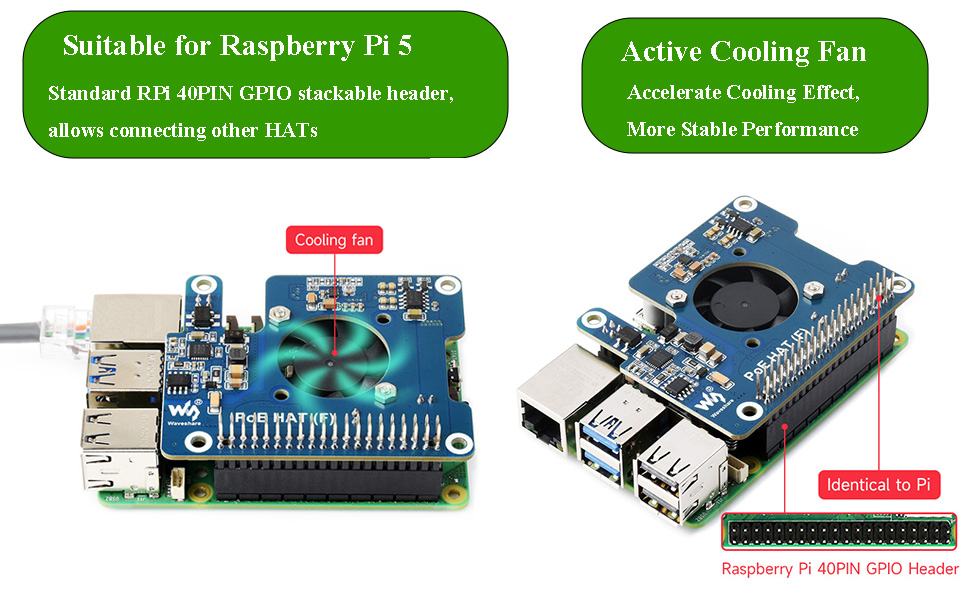

Power Over Ethernet HAT (POE HAT) for Raspberry Pi 5. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs.
Supports 802.3af/at Network Standard. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments
It is providing both network connection and power supply for your Raspberry Pi in one cable
Onboard 5V & 12V header outputs. 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power), be able to power extra devices while providing stable power to Raspberry Pi
Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Onboard MP8759GD buck chip. Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition
Easy to install: Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT
Provide Online Development Resources /User Manual: bit.ly/3H5wFyZ
