for RV1103 Powerful Processing Advanced Neural Processing Unit Versatile Development Environment Integrated for ARM Cortex A7 RISC V MCU NPU ISP Processors

KWD 10
Brand
Walfront
Category
Weight
18 g
– 1 +

Special Features

  • [Multi-Interfaces] With GPIO, UART, SPI, I2C, USB and other interfaces, the board provides convenience for development and debugging tasks and enables seamless integration with various devices and peripherals.
  • [Versatile development environment] By supporting various development environments such as C, C++ and Python, this board enables flexible and efficient development for artificial intelligence projects.
  • [Advanced Neural Processing Unit] Equipped with Rockchip 4th generation NPU, this board provides high computing accuracy and supports mixed quantization of int4, int8 and int16, providing up to 1.0 TOPS int4 computing power and 0.5 TOPS int8 - Computing power can be achieved.
  • [Powerful Processing] The RV1103 development board features single core for ARM Cortex A7 32-bit core with integrated NEON and FPU, providing efficient processing performance.
  • [Fast and efficient operation] With RISC VMCU design, supports fast startup with low power consumption, fast image capture in 250ms, and can achieve real-time face recognition within 1 second. Includes built-in POR, sound codec and MACPHY for expanded functionality.

Description

Specification:
Item Type: for RV1103 Development Board
Material: PCB
Features:
1. Type-C port: power port, burning port
2. UART serial port: Connect USB to TTL module for serial port debugging
3. BOOT button: Press during reset to enter the burning module
4. MicroStorage Card Holder: Used to burn memory card images
5. SPI Flash Memory: Used to burn SPI NAND FLASH images
6. Camera Interface: Compatible with SC3336 3MP Camera (A) Camera
7. ETH Ethernet interface
8. LED indicator light
9. MCU: for RV1103 (LQFN-88)

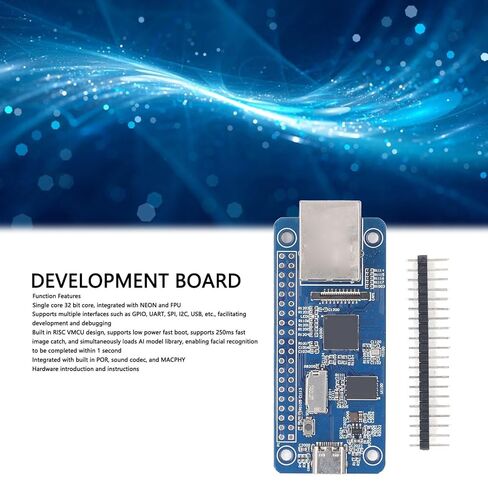

Overview: For RV1103 mini for Linux, a development board was developed based on the for RV1103 chip, with integrated ETH interface, SPIFlash memory, memory card slot and support for SPINAND burning FLASH images and burning images to memory cards, the development board supports multiple interfaces including GPIO, UART, SPI, I2C, USB, etc., making it convenient for developers to develop and debug quickly. The module supports USB detection and burns image files via USB data cable.

Usage:
Use according to the introduction.

Package list:
1 x for RV1103 development board
1 x 20-pin dual pin header
