Module parameters:
Non-Isolated Boost Module
Input voltage: DC 12V 24V (10-32V);
Input current: 16A (Max (more than 10A, please strengthen heat dissipation);
Output voltage: DC 60V 72V 84V (60-97V);
Output current: 2A Max;
Output power: Natural cooling 70W Max, enhanced heat dissipation 100W Max;
Conversion efficiency: 85%;
Output Ripple: 2% Output Voltage (MAX);
Operating temperature: Industrial grade (-40°C to +85°C) (Environmental temperature exceeds 40°C, please reduce power usage or enhance heat dissipation);
Full load temperature rise: 5°C;
No-load current: Typical 35mA;
Load regulation: ±0.5%
Voltage regulation rate: ±0.5%;
Dynamic response speed: 5% 200uS;
Short circuit protection: None (please install a fuse or protection circuit at the input);
Input reverse protection: None (usually can be protected at the input string diode);
Dimensions: 65*47*28.5MM (without copper pillars), 65*47*32MM (with copper pillars).
NOTE：
This module does not have a current limiting function, if for charging large batteries, driving high-power LEDs, Please add a current limiting resistor to prevent damage to the module.

Package Included:

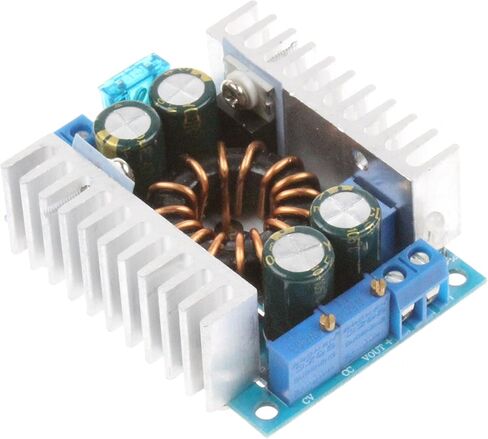

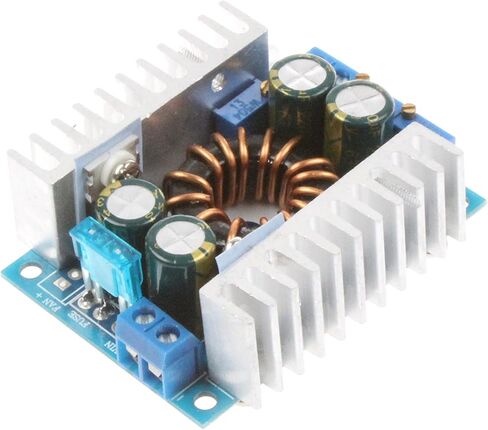

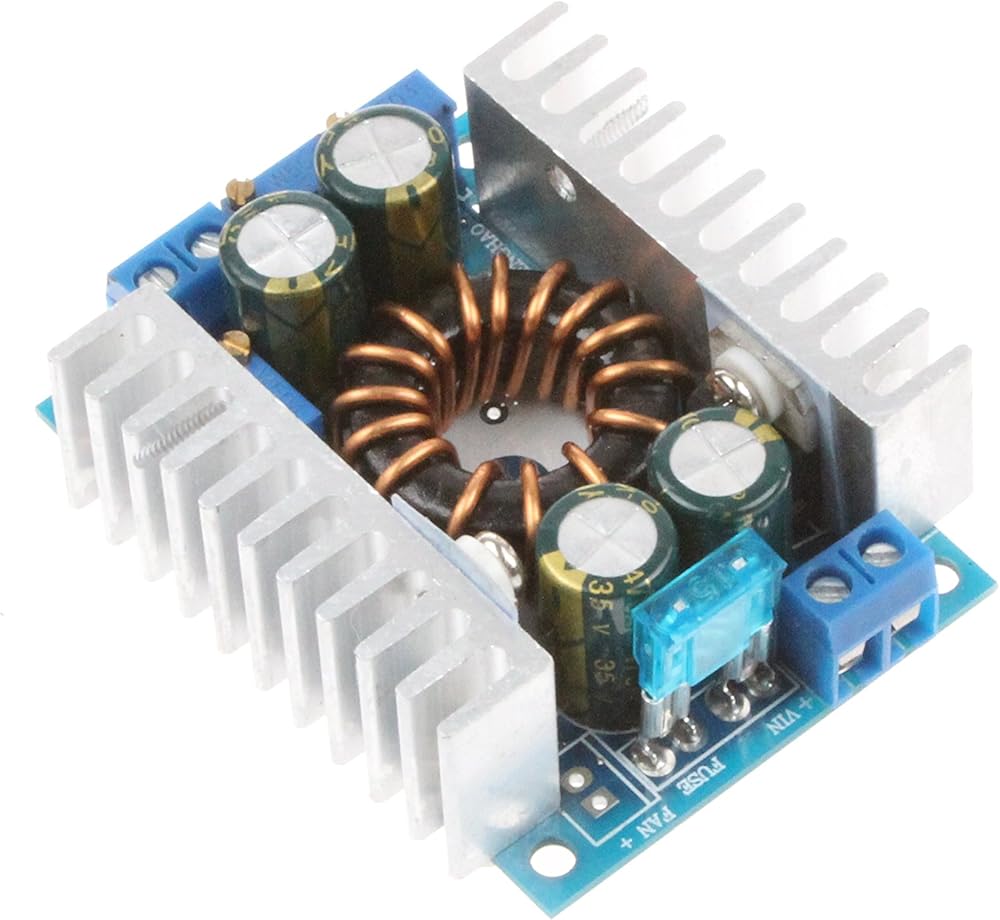

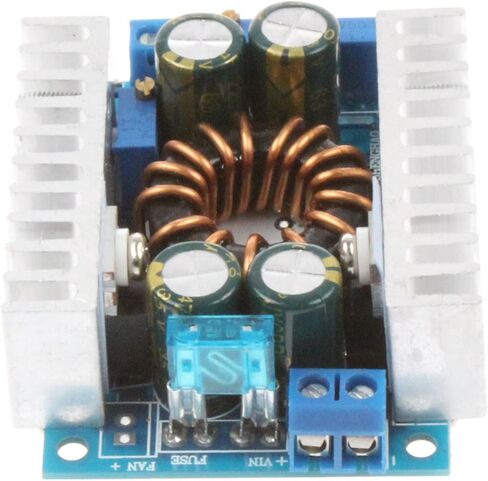

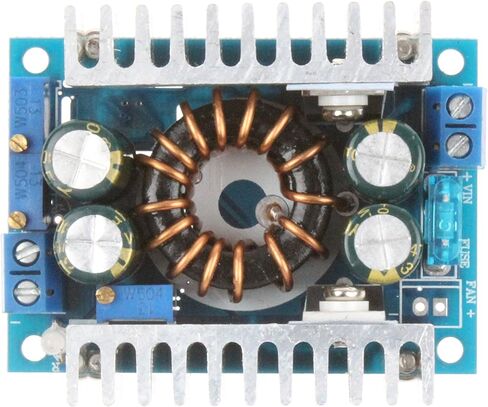

1pcs 100W DC-DC Adjustable Boost Module
