Size:LM7812 DC12V
Description:

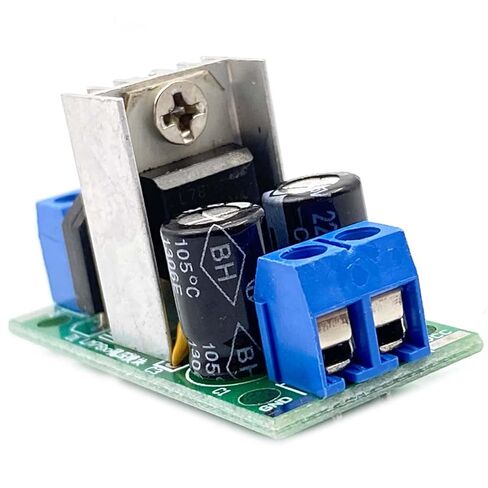

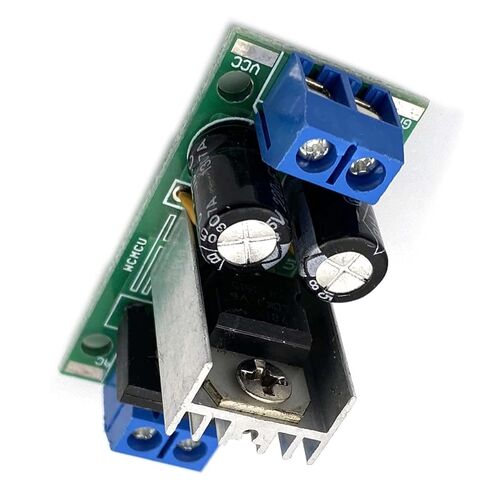

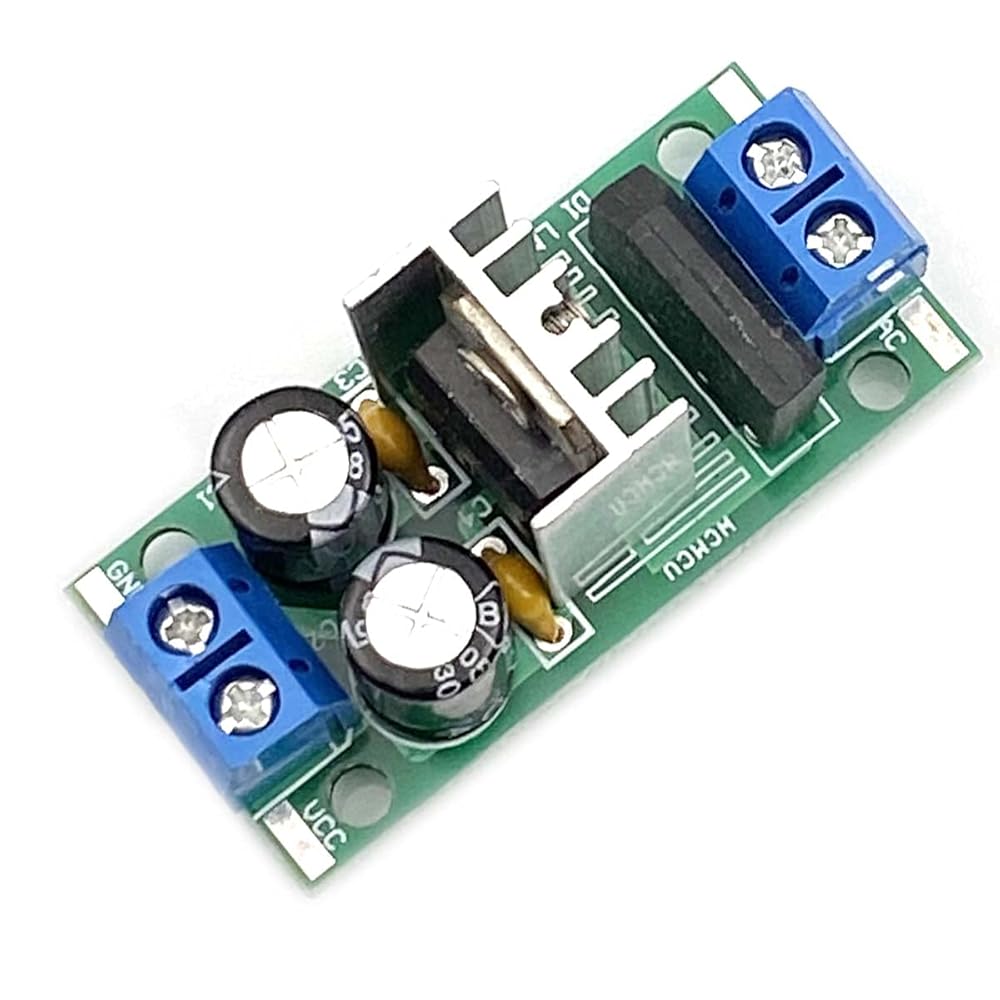

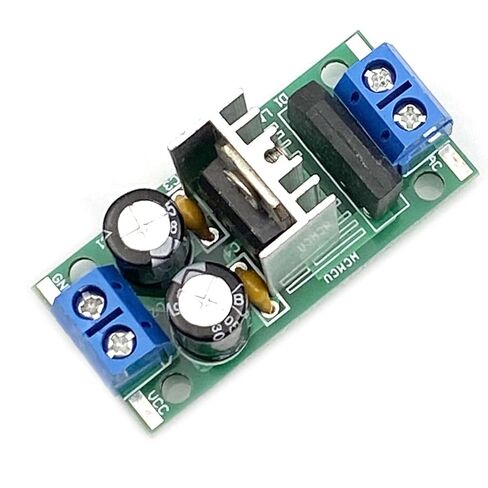

LM7806-6V LM7809-9V LM7812-12V voltage regulator module integrates rectification, filter components and voltage regulator chip, input AC or DC voltage within a certain range can stably output 6V/9V/12V voltage. With overheating and overcurrent protection.
This product is upgraded according to the user's usage. The output is changed from the single terminal output of the original version to the terminal + 5X2 Pins output. And optimize the PCB design, improve the thermal performance and stability of the product.

Parameter:
Enter the rated voltage parameters:
LM7806 - (DC / AC 9V-24V);
LM7809 - (DC / AC 12V-24V);
LM7912 - (DC/ AC 15V- 24V).
There is no need to distinguish between the positive and negative terminals at the input.
Output rated voltage parameters:
LM7806 - DC 6V ± 0.3V;
LM7809 - DC 9V ± 0.3V ;
LM7912 - DC 12V ±0.3V.
Maximum output current: 1.2A Max.
Output mode: terminal + 5x2 pins.
VCC: Connect the output positive.
GND: Connect the output negative terminal.
Dimension : 49 x 26 x 22 mm (LxWxH).
Protection function: overheat protection, overcurrent protection.
Special Note: Do not exceed the rated voltage of the input voltage. Do not overload the output.

Package Inclued:
1pcs Three Terminal Voltage Regulator Module
