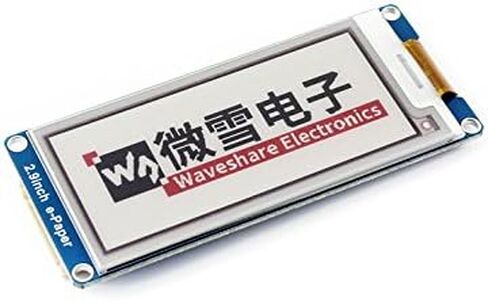

Tri-Color 2.9inch E-Ink Display Module Resolution 296x128 3.3v E-Paper Electronic Screen Panel Three-Color SPI Interface for Raspberry Pi/STM32/Arduino/Jetson Nano

KWD 10.500
Brand
waveshare
Weight
10 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like for Raspberry Pi/Arduino/Nucleo, etc
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32): www.waveshare.com/wiki/2.9inch_e-Paper_Module_(B)

Description

Description

296x128, 2.9inch E-Ink display module, three-color, SPI interface

This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports
red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for
applications such as shelf label, industrial instrument, and so on.

Specifications

Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI

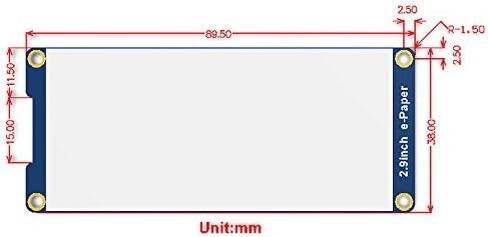

Outline dimension: 89.5mm x 38mm
Display size: 66.89mm x 29.05mm
Dot pitch: 0.138 x 0.138
Resolution: 296 x 128
Display color: red,black, white
Grey level: 2
Full refresh time: 15s （Do not support partial refresh)
Refresh power: 26.4mW(typ.)
Standby power: Viewing angle: >170°

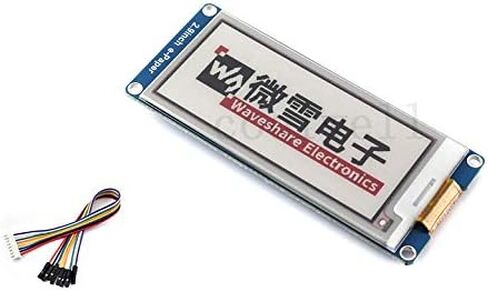

Package Contains

1. 2.9inch e-Paper Module (B) x1
2. XH2.54 20cm 8Pin x1
