Overview
RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

Specification
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
USB-C connector, keeps it up to date, easier to use
The castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
29 × multi-function GPIO pins (20× via edge pinout, others via solder points) 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

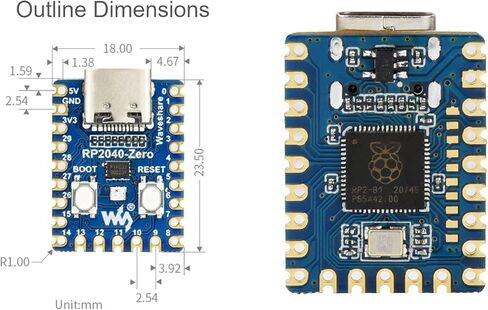

What's On Board
1.USB Type-C connector
2.W25Q16JVUXIQ
2MB NOR-Flash
3.BOOT button
press it when resetting to enter download mode
4.RESET button
5.WS2812
cool RGB LED
6.ME621
low dropout LDO, max current 800MA
7.RP2040
dual-core processor, up to 133MHz operating frequency

Package Content
RP2040-Zero x2

Note
Development Resources are provided , please contact us to get .
