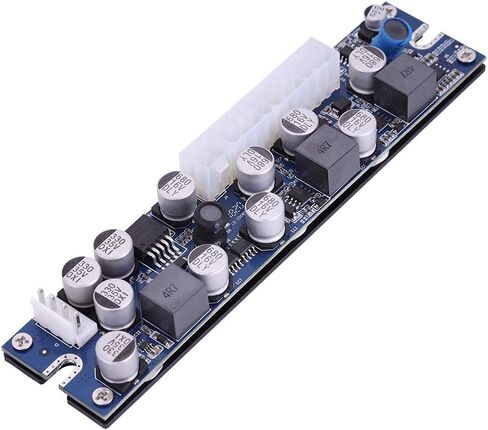

Description:
Fanless design, solid Polymer on the PCBA, long life. DC PSU for Motherboards, high performance with high heat-mode feature, more reliable. Adopt industrial solid capacitor, ideal for being used in rough environment.

Specifications:
Condition: Brand New
Module Size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 in
Input Characteristics:
Input Voltage Range: 16VDC - 24VDC
Input Current Range: 12.0A @19VDC
Input Current: 12.0AMax @19VDC
Work Efficiency: 85% or more
Output Requirement: Output (Vin=19VDC)
Overvoltage : when the output voltage reaches 1.5 times the rated voltage, the output is closed.
Short Circuit : when a short circuit occurs in the output, the output is closed.
Environment Description:
Working Temperature/Humidity: 0°C to 40°C / 45% - 75%
Storage Temperature/Humidity: - 40°C to +70°C / 10% - 90%
Atmospheric Pressure: 86Kpa -- 106Kpa

Package Included:
1 x Power Module
1 x 24pin ATX to 12V AUX
1 x 4 pin Molex Power Supply
1 x SATA Power
1 x 4 pin Floppy Drive Power Connection
1 x 4 pin Wire
1 x DC Input Wire

Notes:
1.Please allow 1-3 cm error due to manual measurement. Thanks for your understanding.
2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
