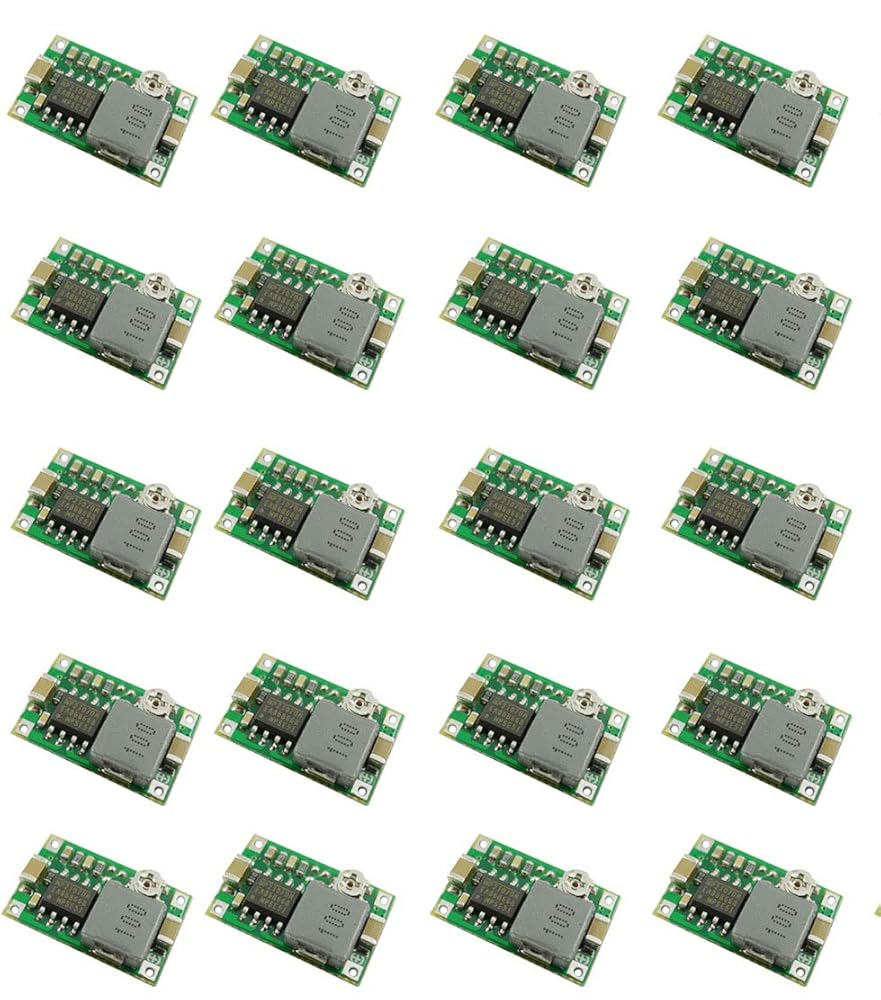

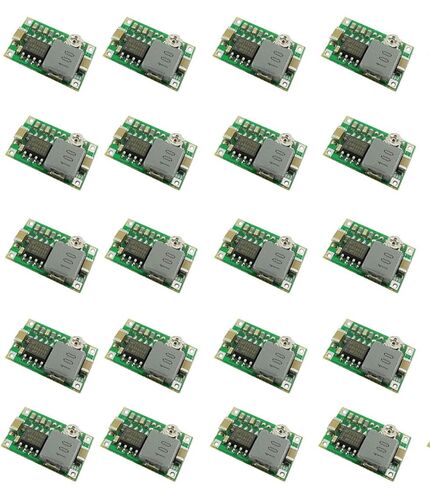

Mini 360 Buck Converter DC-DC Step Down Power Converter Voltage Regulator 4.75-23V to 1.0-17V Adjustable Power Supply Buck Module (Pack of 20)

【Module parameters】Input voltage: 4.75V-23V;Output voltage: 1.0V-17V;Current output: peak 3A, 1.8A long time;Switching Frequency: 340KHz;Output ripple: 30mV (no-load);Load regulation: ±0.5%;Voltage regulation: ±2.5%.
【Adjustable Buck Converter】The module can change the voltage by adjusting the precision resistance on the module. Up to 17V. Voltage regulation: ±2.5%(The adjustable resistor rotates clockwise to step down, counterclockwise to step up)
【High Conversion Efficiency】These mini 360 step-down converter is designed with the high frequency switching technology as the core chip, conversion efficiency up to 96%, smaller size, higher efficiency.
【Protection function】Feature with over-current protection, over-heat protection and short-circuit protection.
【Wide range of applications】The mini 360 module is suitable for DIY supplies, LED lights, micro-controllers, battery chargers, and most low power devices, 340 KHz switching frequency.
