1 Pcs DC-DC 4-38V to 1.25-36V 8A 200W Step Down Buck Converter Voltage Regulator Module DC XL4016 XL4016E1 Digital PWM Adjustable

KWD 3.500
Brand
WSDMAVIS
Weight
18 g
– 1 +

Special Features

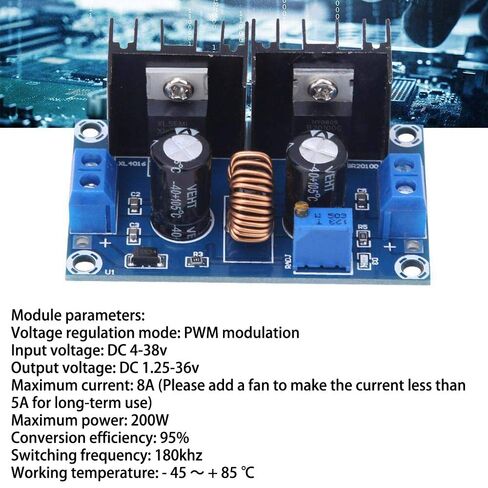

  • Input: DC 4-38V,Output Voltage: DC 1.25-36V,Output Current: Max. 8A( it is recommended to less than 5A for long-term working),Output Power: Max. 200W,Working temperature: -45～+85℃, Size: 6*3.7cm.
  • The module uses original XL4016 chip and work in 180KHz, with high power and high efficiency. High conversion efficiency up to 95%.

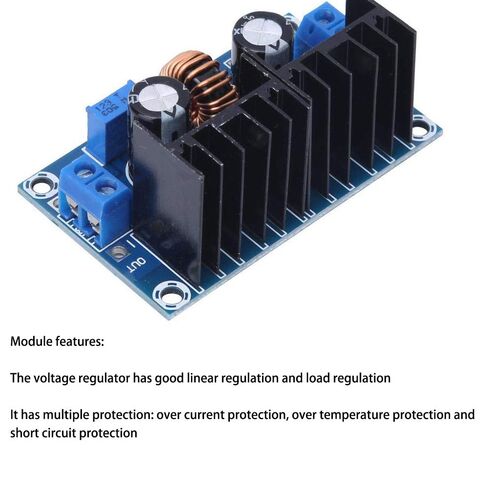

  • Voltage regulation mode: PWM modulation, with good linear regulation and load regulation, with multiple protections: over current protection, over temperature protection and short circuit protection.
  • Widely used: car audio, radio, navigator, display, LED car display, air conditioner, walkie-talkie, motor, etc.
  • Note: Please ensure that there is a voltage difference of 2V between the input voltage and the output voltage. The input is limited to DC voltage and cannot exceed 38V, otherwise the module will be damaged.

Description

Note:
Actual color may be slightly different from the image due to different monitor and light effect. Please allow minor deviation due to manual measurement.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package Includes: 1pcs
