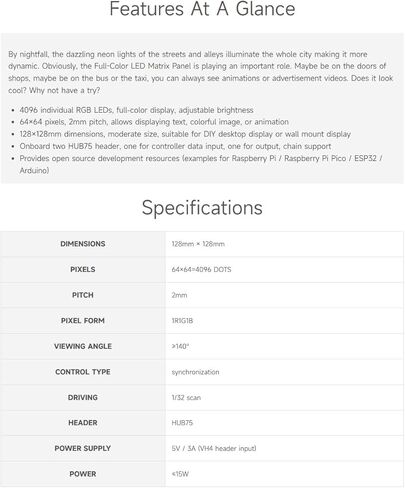

128×128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display. Onboard two HUB75 header, one for controller data input, one for output, chain support
*The back view is for reference only, PCB silkscreen and layout may have small differences from batch to batch, but the software is compatible. Provides online open source development resources (examples for Raspberry Pi/Raspberry Pi Pico)
Chainable Design: Multi LED Matrix Panel can be chained together to build a larger panel via HUB75 input/output header. Each RGB LED matrix panel requires a standalone 5V/3A or above power supply, when they're chained to display
Usage Scenarios: DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...
