Features
Adopts original FT2232HL chip, fast communication, stable and reliable, better compatibility
Extending USB to 2CH RS485, allows concurrent and independent communication for each channel
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

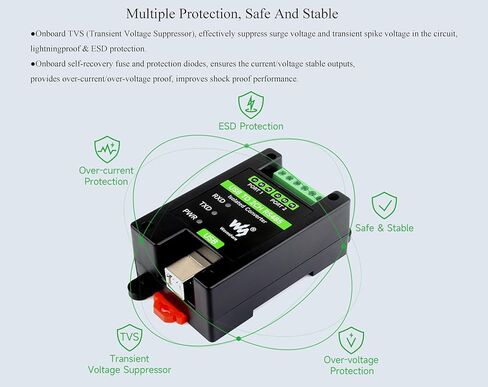

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching

Specifications
Host port: USB
Device port: RS485

1.USB
Operating voltage: 5V
Connector: USB-B
Protection: 200mA self-recovery fuse, isolated output
Transmission distance: About 5m

2. Isolated RS485
Connector: Screw terminal
Direction control: Hardware automatic control
Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance: About 1.2km(low rate)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate: 300bps ~ 3Mbps

3. LED Indicators
PWR: Red power indicator, lights up when there is USB connection and voltage is detected
TXD: Green TX indicator, lights up when the USB port sends data
RXD: Blue RX indicator, lights up when the device ports send data back

4. Operating environment
Temperature : -15℃ ~ 70℃
Humidity: 5%RH ~ 95%RH

5. Operating system: Linux, Android, Windows 11/10/8.1/8/7
