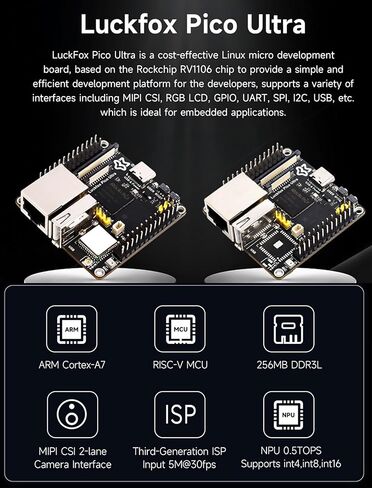

Luck-fox Pico Ultra W (with 8GB EMMC 256MB Memory, with onboard W-i-F-i, No PoE module) is a cost-effective Linux micro development board, based on the Rock-chip RV1106 chip to provide a simple and efficient development platform for the developers, supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, 12C, USB, etc. which is ideal for embedded applications.

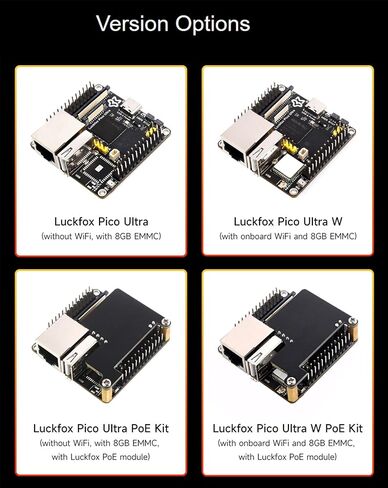

Version Options

Luck-fox Pico Ultra ( with 8GB EMMC 256MB Memory,No W-i-F-i, No PoE module)

Luck-fox Pico Ultra PoE Kit (with 8GB EMMC 256MB Memory, with PoE module,No W-i-F-i)

Luck-fox Pico Ultra W (with 8GB EMMC 256MB Memory, with onboard W-i-F-i, No PoE module)

Luck-fox Pico Ultra W PoE Kit (with onboard -Wi-F-i and 8GB EMMC 256MB Memory, with PoE module)

Features

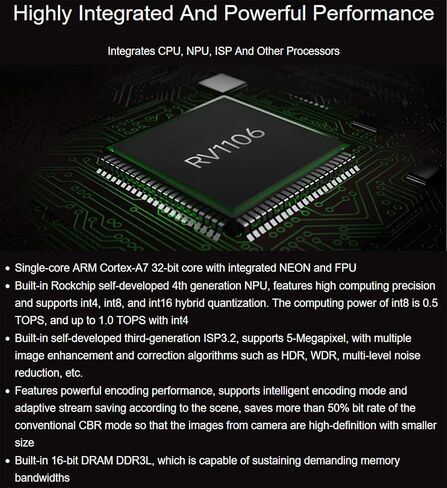

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rock-chip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

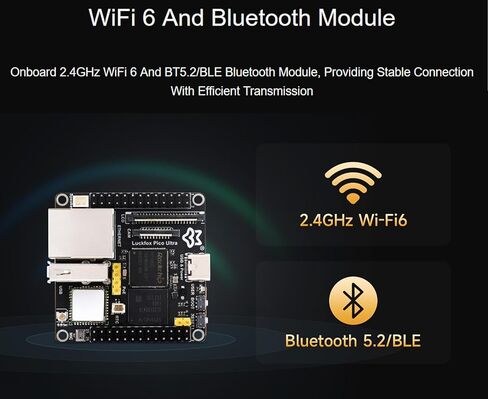

Onboard 2.4GHz W-i-F-i 6 and BT5.2/BLE Blue-too-th Module, Providing Stable Connection with Efficient Transmission

Specification
Main chip: RV1106G3
ARM Cortex-A7
Memory:256MB
Default Storage: EMMC(8GB)
ISP: Input 5M @30fps (Max)

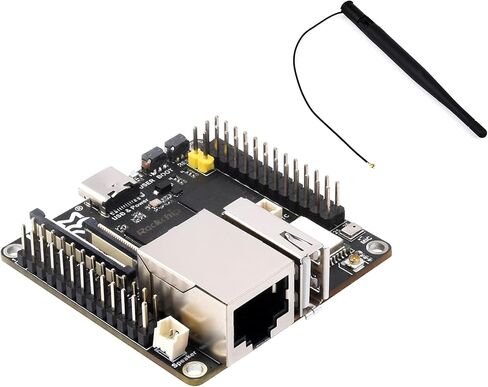

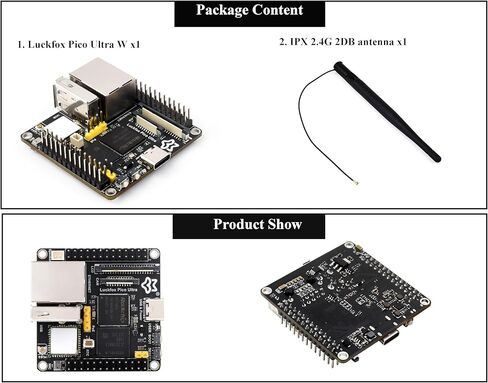

Package Content
Pico Ultra W x1
IPX 2.4G 2DB antenna x1
