waveshare ESP32-GEEK Development Board Based On ESP32-S3R2 Controller Chip,with 1.14inch 65K Color LCD,Supports WiFi and BLE 5,USB-A,I2C,UART Port,GPIO Header

KWD 8

Brand
waveshare
Weight
15 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • ESP32-GEEK Mini Development,Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
  • Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory.Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
  • Integrated 2.4GHz WiFi and Bluetooth LE wireless communication.WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes.WiFi supports 1T1R mode with data rate up to 150 Mbps.Bluetooth supports high power mode (20dBm).Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
  • Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port.Equipped with plastic case and cables
  • Provides online open-source demo and resources, more convenient for learning and development

Description

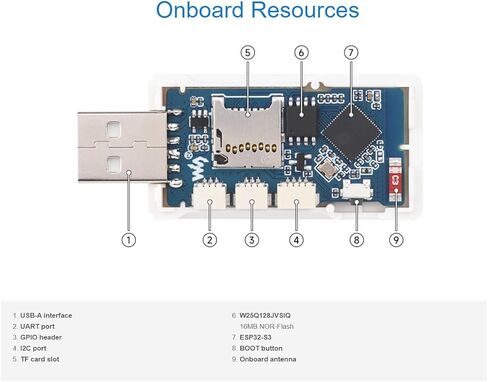

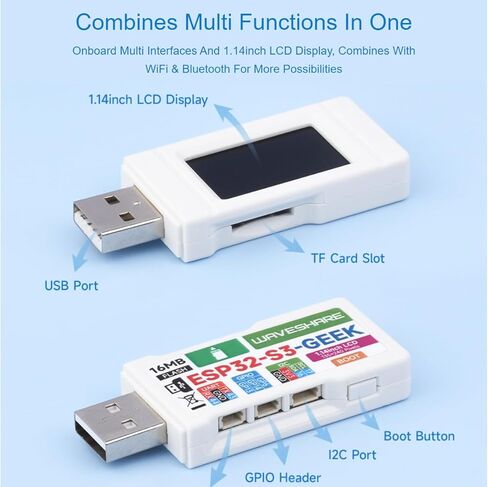

ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14inch 65K Color LCD, Supports WiFi & Bluetooth LE, USB-A Male Port, With White Plastic Case Features 1.ESP32-S3 GEEK Development Board Integrated LCD Screen, TF Card Slot, Boot Button and Other Peripheral interfaces Suitable For Applications Such As Wireless USB Flash Drive, USB WiFi/Bluetooth, USB Dongle Based On ESP32-S3 2.Combines Multi Functions In One Onboard Multi Interfaces And 1.14inch LCD Display, Combines With WiFi & Bluetooth For More Possibilities 3.Application Example Suitable For Creative Applications Such As Wireless USB Flash Drives, USB WiFi/Bluetooth, USB Dongle Based On ESP32-S3, As Well As For Introductory Programming Learning, Etc. Board Specifications ESP32-S3-GEEK is a geek development board designed by Waveshare, onboard USB-A port, 1.14inch LCD screen, TF card slot, and other peripherals. Supports 2.4GHz WiFi and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project. Package Content ESP32-S3-GEEK and cables x1 Note Technical Support is provided, please contact with us first if you have any problem .
