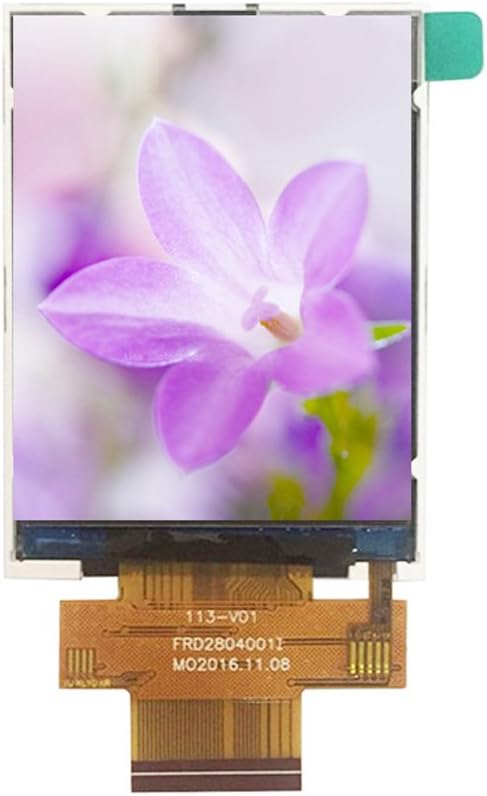

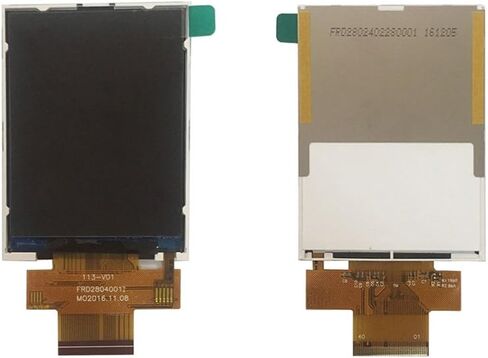

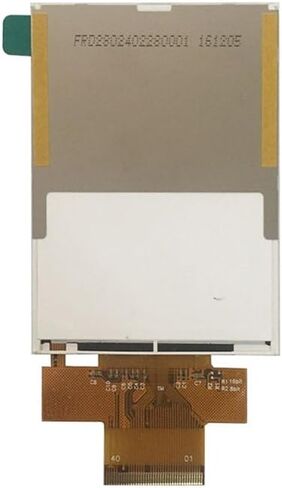

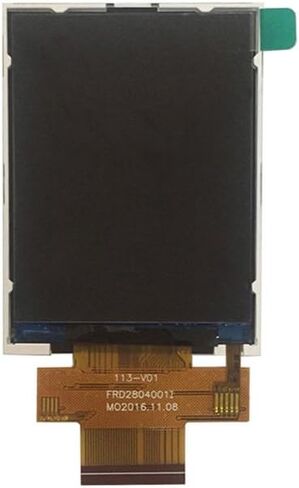

This 2.8inch TFT LCD module, 240x320 high resolution, can be can be easy controlled, such as AVR, STM32,It can be used in any embedded systems which require display high quality colorful image.
Interface: Description
1, GND: Ground
2, RESET: LCM Reset pin Signal is active low.
3, SCL: This pin is used serial interface clock in 4-wire 8-bit serial data interface. If not used, this pin should be connected to IOVCC or GND.
4, D/C: -4-line system (D/CX): Serves as command or parameter select. Fix to IOVCC level when not in use.
5, CS: Chip select pin (inchLowinch enable)
6, SDA: Serial input signal. The data is applied on the rising edge of the SCL signal. If not used, fix this pin at IOVCC or GND
7, SDO: Serial output signal.The data is outputted on the falling edge of the SCL signal. If not used, open this pin
8, CND: Ground
9, VCC: Power supply for LCM (2.8V-3.3V)
10, LEDA: Anode of Backlight (3.0V-3.4V Typical:3.2V)
11, LEDK1: Cathode of Backlight
12, LEDK2: Cathode of Backlight
13, LEDK3: Cathode of Backlight
14, LUDK4: Cathode of Backlight
15, XL: Touch panel control pin
16, YU: Touch panel control pin
17, XR: Touch panel control pin
18, YD:Touch panel control pin

Specifications:
Material:LCD Screen
Size: 2.8 inch
Control chip: ILI9341
Resolution: 240×320
Display area: 43.20（W）×57.60（H）
Interface type: 4-wire SPI interface
Number of pins: 18pin
Display color: 262K full color
Working temperature: -20~70 degrees
Pixel size: 0.18×0.18 (mm)
Working voltage: 3.3V
Display type: TFT
Weight:16g

Package Included:
1x TFT LCD Display (without touch panel)

Note:
his model without touch panel
