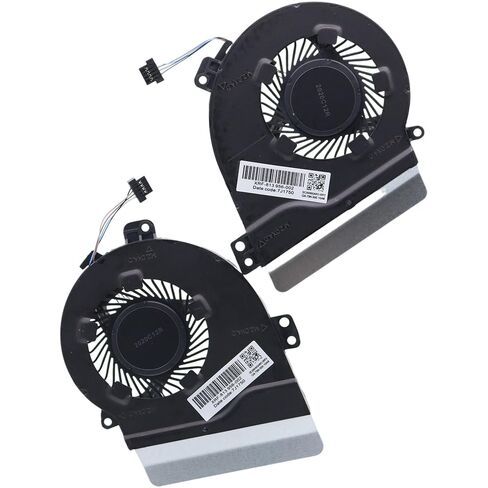

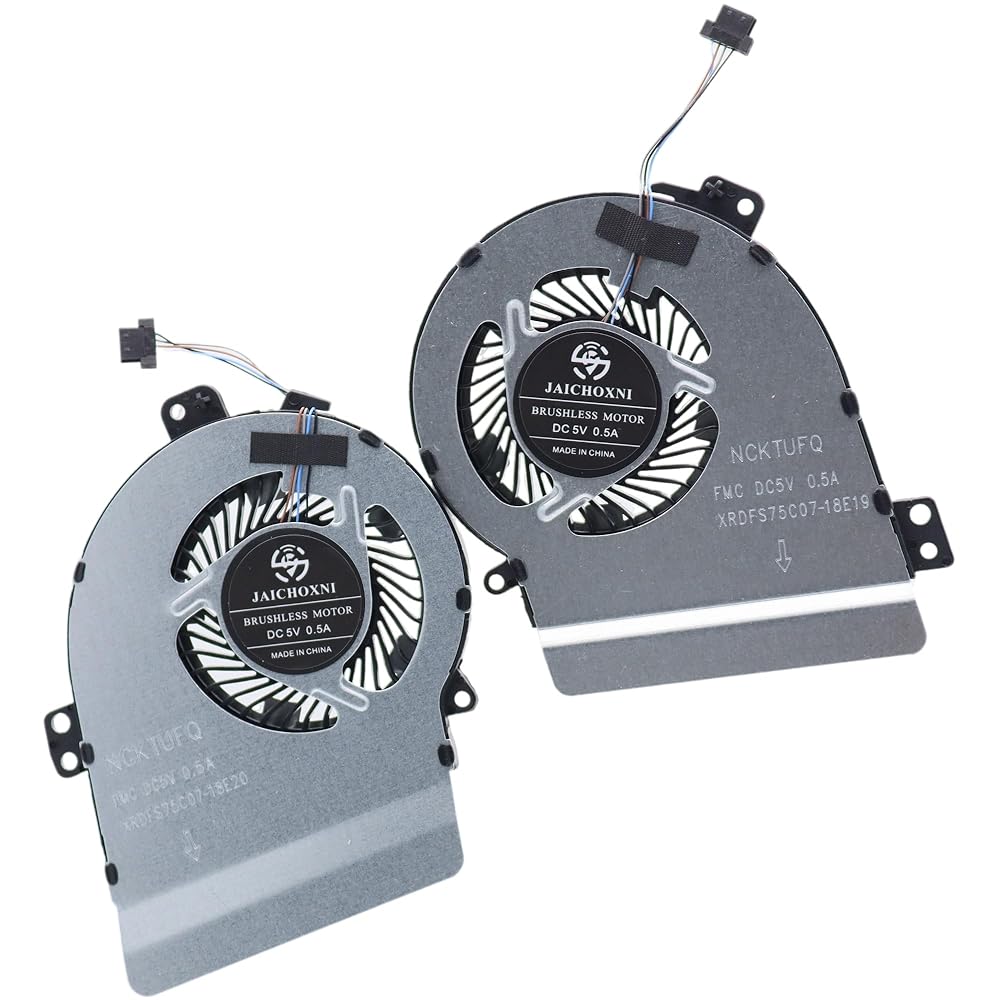

OEM Cooling Fan for the Pavilion Gaming 15-CS laptop series with GTX 1050 graphics, this is the cooling fan for CPU processor or GPU Graphics card.

NOTE: There are 2 Version of Fan (UMA Integrated or Discrete GPU graphics), NOT Fit for UMA Integrated graphics series.

If your PC fan is running very loud or not functioning then a replacement may be needed.

The fan uses an integrated flex cable to connect to the motherboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required.

SPS #: L40619-001, L40620-001
Manufacturer Part Number(s):
ND75C07-18E19, ND75C07-18E20, 47G7ETP003, 47G7ETP103
Wire overall Length approx: 3.40 cm/1.30-inches
Power Connection: 4 wires, 4 Pins
Direct Current: 5V
Ampere: 0.5A
Life Time of the fan: 100000 HRs
Fan Speed ​​Control: 2500 RPM(Auto)

Reference list of compatible with TPN-Q208:
- 15-CS series: 15-CS3073CL, 15-CS3006TX, 15-CS3000, 15-CS3037TX, 15-CS1504SA, 15-CS1506NA, 15-CS3041TX, 15-CS2082TX, 15-CS0007NI, 15-CS2501NA .....

What's in the box:
1x CPU Cooling Fan
1x GPU Cooling Fan
2x Thermal Greases
