Features:
1. The cross screw sliding table module is use of aluminium alloy material with anodized surface, high strength, wear resistance and good corrosion resistant
2. Ball screw slide guide using accurate cross screw slides, high-precision smooth movement
3. High quality sliding table, 80*80mm table size, accurate machining and stable performance, good using effect
4. Linear motion, manual linear guide module with a small frictional resistance

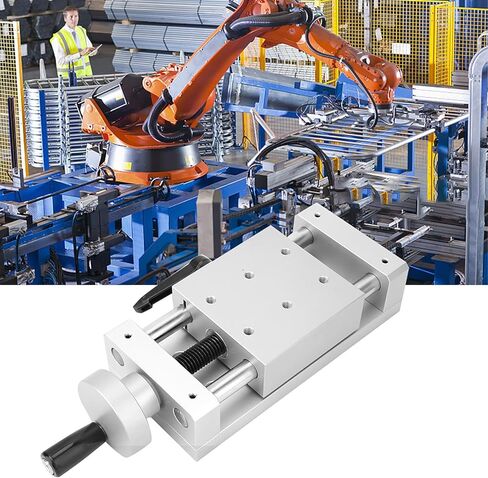

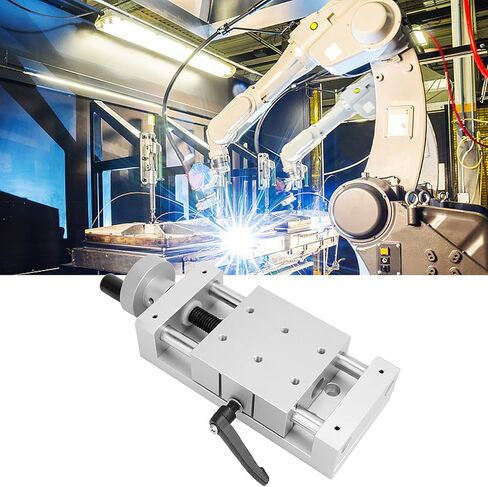

5. Linear rail slide is widely used in production machinery, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, mechanical equipment positioning and movement

Specification:
Condition: 100% Brand New

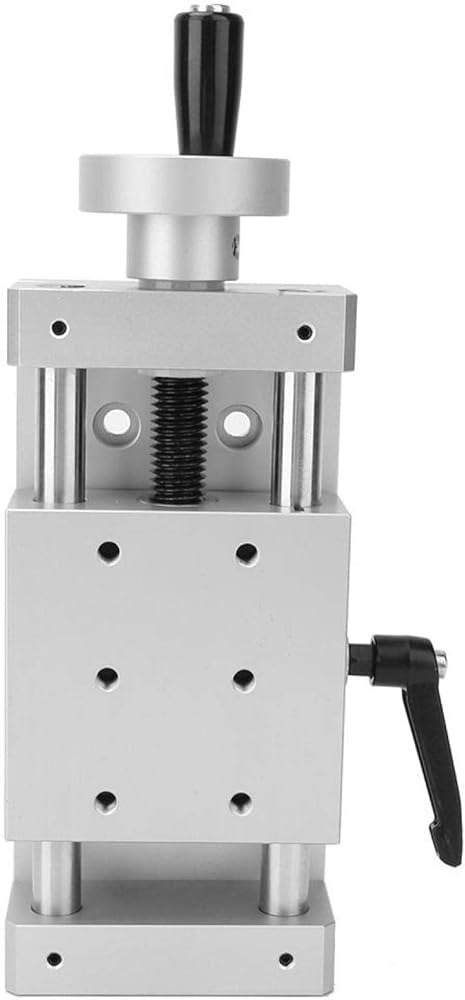

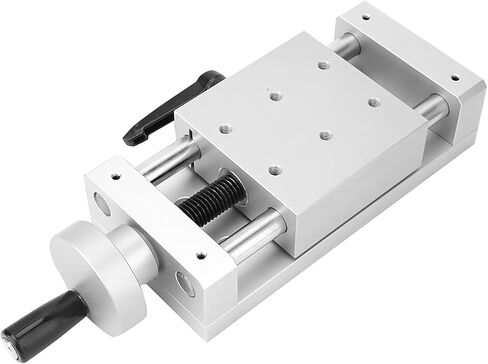

Item Type: Sliding Table Linear Rail Stage
Material: Aluminum Alloy
Optional Model: KA80-1402-50, KA80-1402-100, KA80-1402-150
Z*2 Stroke: 50mm/100mm/150mm
L Slider Length: 170mm/220mm/270mm
L1 Hole Spacing: 100mm/150mm/200mm

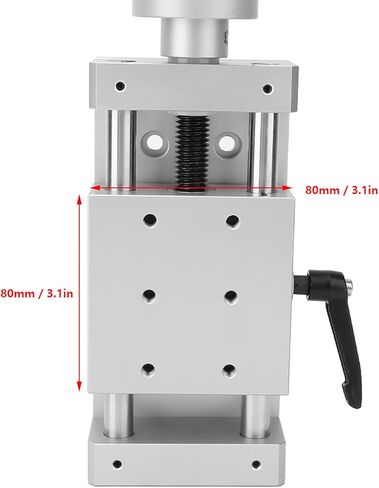

Table Size: 80 * 80mm / 3.1 * 3.1inch
Feed Mode: Feed Screw Type
Feed Spacing: 2mm
Screw Diameter: 14mm
Bearing Capacity: 196N
Surface Treatment: Anodic Oxidation (White)
Fixed Way: Clamp Screw
Scope of Application: Automatic Equipment, Machine Tools, Optical Instruments, etc
Weight: Approx. 2124g

Package List:
1 * Sliding Table Linear Rail Stage
