PATIKIL Inductor Assortment Kit, 200pcs 20 Values Straight Pin Toroidal Inductor with Color Ring for Electronic Circuits

KWD 4
Brand
PATIKIL
Weight
80 g
– 1 +

Special Features

  • Types: 1UH, 2.2UH, 3.3UH 4.7UH, 6.8UH, 10UH, 15UH, 22UH, 33UH, 47UH, 100UH, 150UH, 220UH, 330UH, 470UH, 680UH, 1MH, 2.2MH, 3.3MH, 4.7MH; Size:60mmx3.5mm / 2.36 x 0.14 inch; Packing List: 200pcs x Inductor (20 Values, Each Value has 10)
  • Advantage: Complete Set: The kit includes all necessary components for cable assembly, including 3 meter long jumper wires, tweezers, heat shrink tubes, connectors, and terminals.The kit comes with everything needed for quick and hassle-free cable connections, making it suitable for both professionals and DIY enthusiasts.
  • Instruction: Easy to use, cut the desired length of jumper wire from the 3 meter length. Strip the ends of the wire and insert them into the appropriate connectors. Use a crimping tool or pliers to securely crimp the connectors onto the wire. Slide the heat shrink tube over the crimped connection and use a heat source to shrink the tube, providing insulation.
  • Application: The Socket Connector Kit is a comprehensive set that includes various components for easy and reliable cable connections. Good for electronics projects, automotive wiring, home installations, electrical repairs, electronics prototyping, teaching electronics in the classroom and so on.
  • NOTE: 1. Ensure proper wire stripping and crimping techniques for reliable and secure connections. 2. Follow safety precautions when using heat sources to shrink the tubes, avoiding burns or damage to the cables.

Description

The Inductor Kit is a comprehensive set that includes various Values Inductor for easy and reliable cable connections. Good for electronics projects, automotive wiring, home installations, electrical repairs, electronics prototyping, teaching electronics in the classroom and so on.

Specification

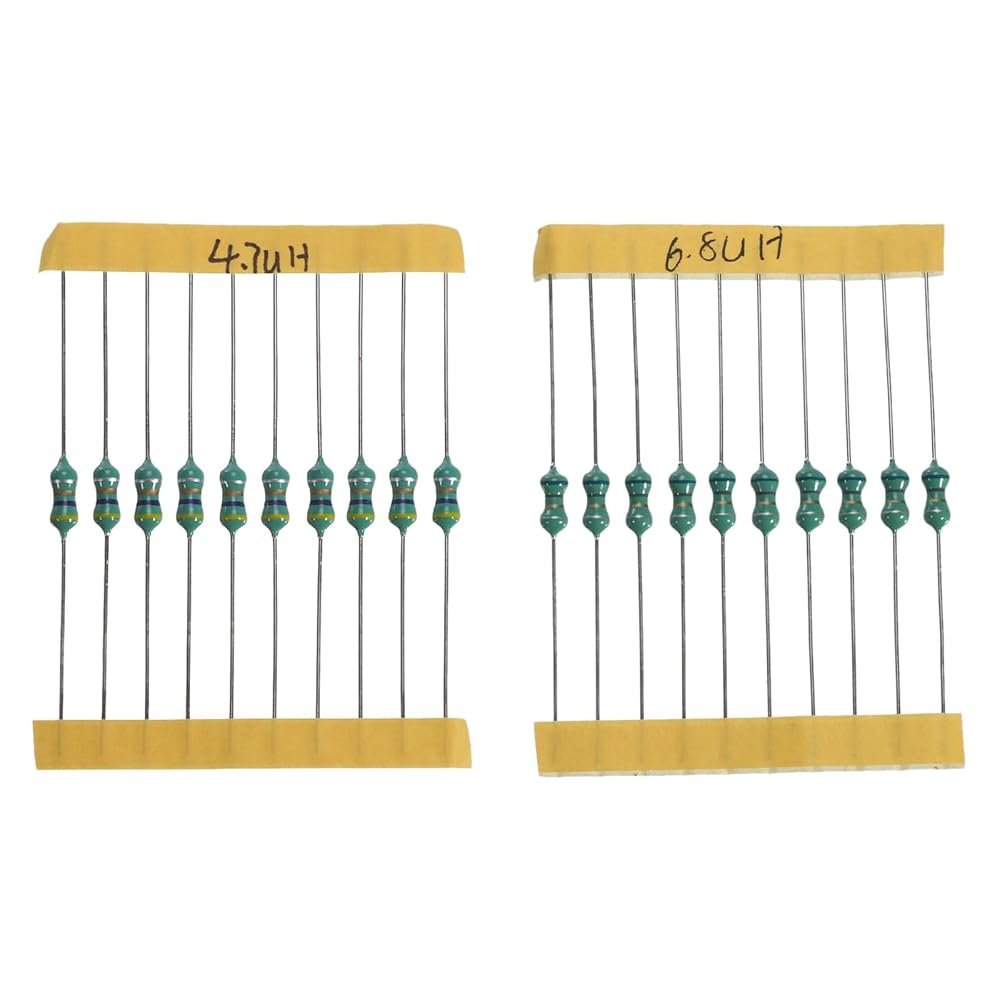

Types: 1UH, 2.2UH, 3.3UH 4.7UH, 6.8UH, 10UH, 15UH, 22UH, 33UH, 47UH, 100UH, 150UH, 220UH, 330UH, 470UH, 680UH, 1MH, 2.2MH, 3.3MH, 4.7MH
Size:60mmx3.5mm / 2.36 x 0.14 inch
Packing List: 200pcs x Inductor (20 Values, Each Value has 10)

Advantage
The kit contains a selection of color-coded toroidal inductors with different inductance values, allowing for flexibility in circuit design. Each inductor is color-coded, making it easy to distinguish between different inductance values during circuit assembly.

Instruction
1.Select the appropriate toroidal inductor based on the required inductance value specified in the circuit design or data sheet.
2.Install the inductor correctly, aligning the pins with the corresponding slots on the circuit board.
3.Connect the inductor to the circuit, following proper polarity and ensuring secure joints for reliable connections.

NOTE:
1. Pay attention to the correct pin configuration and polarity of the toroidal inductors during installation.
2. Handle the inductors with care to avoid damaging their sensitive components, such as the toroidal core or windings.
