STEPPERONLINE Closed Loop Stepper Motor 1 Axis CNC KIT 42Ncm/59.48oz.in Nema 17 Motor & 0-3.0A 24-48VDC Closed Loop Stepper Driver CL42T V4.1

KWD 27
Weight
0.9 kg
– 1 +

Special Features

  • This CNC kit includes:

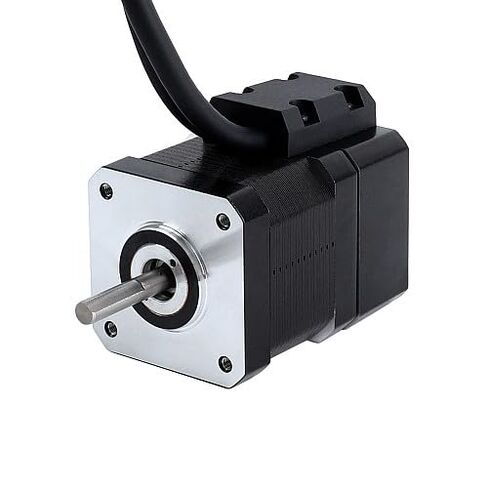

  • 1 x 17HS15-1504D-E1K: Nema 17 Closed Loop Stepper Motor 42Ncm(59.48oz.in) with Encoder 1000PPR(4000CPR)
  • 1 x CL42T-V41: Closed Loop Stepper DriverV4.1 0-3.0A 24-48VDC for Nema 11, 14, 17 Stepper Motor
  • 1 x CABLE-PC-1: RS232 Debugging Cable
  • Suit for 3D printer/CNC machine/Carving Machine/Dispenser/Automation Application

Description

Motor Specification

*Manufacturer Part Number: 17HS15-1504D-E1K
*Number of phase: 2
*StepAngle: 1.8deg
*Holding Torque: 42Ncm(59.48oz.in)
*Rated Current/Phase: 1.5A
*Phase Resistance: 1.65ohms
*Inductance: 2.5mH ± 20%(1KHz)
*Frame Size: 42 x 42mm
*Body Length: 60mm
*Shaft Diameter: Φ5mm
*Shaft Length: 24mm
*D-Cut Shaft Length: 15mm
*Lead Length: 500mm

Encoder Specification

*Output Circuit Type: Differential type
*Encoder Type: Optical Incremental
*Encoder Resolution: 1000PPR(4000CPR)
*Output Signal Channels: 2 channels
*SupplyVoltage Min: 5V
*SupplyVoltagemAx: 5V
*Output HighVoltage: *Output LowVoltage:
Driver Specification

*Output Peak Current: 0~3A
*InputVoltage: +24~48VDC(Typical 24VDC)
*Logic Signal Current: 7~16mA (Typical 10mA)
*Pulse Input Frequency: 0~200kHz
*Pulse Width: 2.5μS
*RS232 debugging interface available
*Low noise and vibration, smooth motion
*Protections for over voltage, over current and position following error
