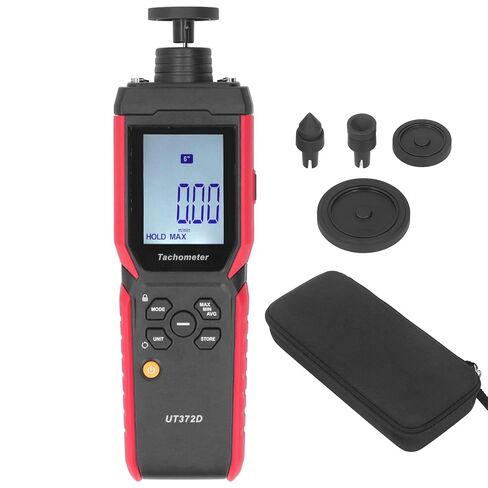

Digital Tachometer Non and Revolution Frequency Meter Handheld RPM Gauge UT372D,Handheld Digital Tachometer for Accurate RPM and Frequency Measurement

KWD 47.500

Brand
Hilitand
Weight
0.7 kg
1 +

Special Features

  • LCD DIGITAL DISPLAY: The digital tachometer uses LCD display screen, which clear and intuitive, with backlight function, making it easy to read measurement data in a dark environment. ,Conveniently view and export data through mobile app using .
  • TYPE: The tachometer supports measurement with higher accuracy and stable measurement, equipped with tapered and inner tapered probe heads to meet different scenarios.MANUAL & LOCKING MODE,Choose between manual and locking modes for longer measurements.
  • : This table can be used to measure rotational speed and frequency, and supports data through mobile APP, making it convenient for users to view data and export charts. & NON- MODES,Highly accurate mode measurements with optional non- mode for hard-to-reach places.
  • MANUAL AND LOCKING: Manual and locking measurement modes can be selected. When it necessary to measure and record data for a long time, long press the lock button to greatly improve efficiency.HIGHLY SENSITIVE PROBE,Upgraded microprocessor and internal components ensure accurate measurements for fan, motor, and propeller speeds.
  • NON : This tachometer supports non measurement, uses photoelectric technology to accurately measure motor speed (RPM) and frequency (Hz), suitable for fan, motor, aircraft propeller, etc.LCD DISPLAY,Clear and intuitive LCD display with backlight function for easy reading in dark environments.

Description

Spec:
Item Type: Digital Tachometer
Model: UT372D
Material: ABS
Battery: 3 x 1.5V AAA Battery (battery not included)
Use: Widely used in the manufacturing industries of electric motors, fans, paper making, plastics, chemical fibers, washing machines, automobiles, aircraft, ships, etc.
LCD Display: 5 digit LCD display, maximum display up to 99999
Overload Display: Displayed in OL
Sensor Type: Photodiode and Hall Sensor
Speed And Frequency Accuracy: ±(0.02% reading +1 word)
Rotation Speed Resolution (RPM): 0.01(1-99.99); 0.1(100-.9); 1(1000-99,)
Frequency Resolution: 0.1Hz
Surface Velocity Resolution: 0.01 (1-99.99); 0.1(100~.9); 1(1000-99,)
Length Resolution (m): 0.1m circumference runner 0.01(1-99.99); 0.1(100-.9); 1(1000-99,)
6 inch circumference runner 0.01(1-99.99); 0.1(100-.9); 1(1000-99,)
Length Resolution (in): 0.1m circumference runner 0.32(1-99.99); 0.3(100-.9); 1(1000-99,)
6 in circumference runner 0.5 (1-99.99); 0.5(100-.9); 1(1000-99,)
Length Resolution (ft): 0.1m circumference runner 0.02 (1-99.99); 0.1(100-.9); 1 (1000-99,)
6 in circumference runner 0.04 (1-99.99); 0.1 (100-.9); 1 (1000-99,)
Range:
Non Type:
Rotational Speed Measurement Range (RPM): 1-99999
Frequency (Hz): 1-1666
Counting Range (Times): 1-99999
Type:
Rotational Speed Measurement Range (RPM): 1-19999
Frequency (Hz): 1-333
Surface Speed Measurement Range: 0.1m circumference runner; 0.1-1999m/min; 0.4-6,550ft/min; 4-78,700in/min
6 in circumference rotation; 0.15-1, 524m/min; 0.5-5,000ft/min; 6-60,000in/min
Length Measurement Range: 0-99999 (m, in, ft)

Package List:
1 x Tachometer
4 x Accessories
1 x User Manual
