Specification:

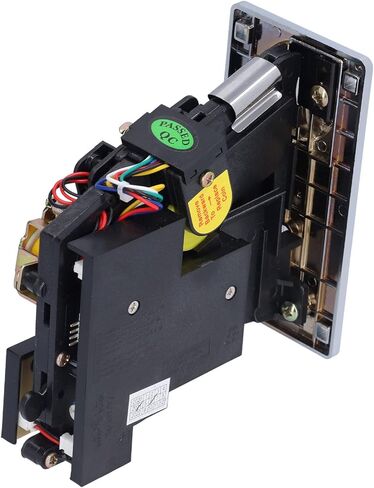

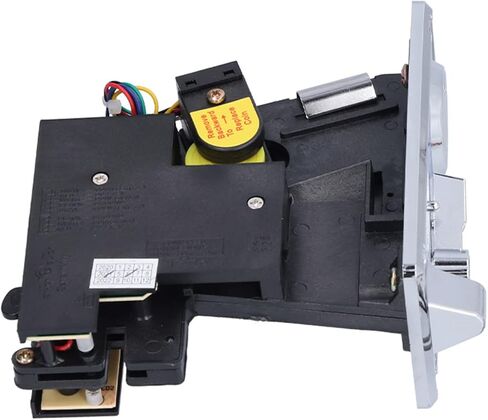

Item Type: Acceptor
Material: Plastic + Hardware
Applicable Diameter: 18mm-31mm/0.7-1.2in
Applicable Thickness: 1.2mm-3.0mm/0.04-0.1in
Working Temperature: -15℃-+75℃
Working Voltage: DC12±20%

How to Use:
1. Please remove the plastic in the holder first, and replace it with the to be used
2. Loosen the screw on the back of the slot, and adjust the fixing piece on the back of the slot according to the diameter of the to be used, so as to avoid mistaken throwing by those with too large diameter
3. To meet the needs of the board of the game machine, select the switch between N.O. (normally open) and N.C. (normally closed); except for the big Mary and special machines that have been indicated, most people generally use N.O. (normally open)
4. To meet the needs of the board of the game machine, select the length/speed three‑stage switch (TIMESWITCH): 25ms is a short fast , suitable for fast machines such as Damari, 45ms is a medium fast , Suitable for general machines (if non‑special standard machines can be switched to this section), 65ms is a slow , suitable for entertainment machines that do not require fast insertion
5. The VR knob is used to adjust the sensitivity of screening, clockwise adjustment (‑), the acceptance range of tolerance is larger, counterclockwise adjustment (+), the tolerance range of tolerance is smaller, that is, the screening is stricter .
6. See instructions for wiring

Package List:
1 x Acceptor
4 x Screw
4 x Nut
1 x 4Pin Cable
