2PCS

KWD 4.500
Style2Pcs
– 1 +

Special Features

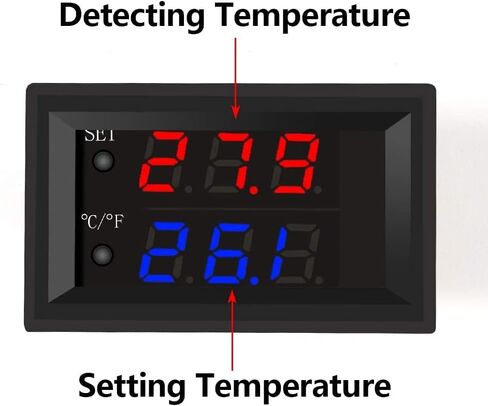

  • Dual color LED display: this digital thermostat control module of dual color LED display, which show the measured temperature (red) and set temperature (blue) at the same time, which can be applied for cooling/ heating mode, you can test indoor or outdoor temperature
  • Direct-current 12V 200 mA temperature controllers，the measurement temperature is from -50 to 110℃(-58 to 230℉), the control and backlash precision: 0.1 Celsius, the refresh rate: 0.5 s, the module size: 48 x 29 x 32 mm/ 1.89 x 1.14 x 1.26 inch, the probe length: 1.5 inches, the cable probe length: 1 ft
  • Can be used for fish tank water temperature control, incubation field, equipment cabinet, air conditioning system, temperature control protection, control cabinet cooling system and other DIY temperature control systems
  • Waterproof design: the NTC (10K 0.5%) probe is waterproof, and you can control the temperature at will, can also control heating or cooling according to different needs
  • 0.1 ℃ control accuracy with 0.1 ℃ backlash precision, easy and precise to use

Description

Specifications:
Operating voltage: DC 12V 200mA
Power consumption: ≤ 35 mA (static), ≤ 65 mA (relay close)
Temperature sensor type: 10K 0.5% NTC
Compatible load: 5A/ 15A 220VAC, 20A 14VDC
Measurement range: -50 to 110 Celsius (-58 to 230 F)
Elaboration precision: +/-0.1 Celsius
Control precision: 0.1 Celsius
Backlash precision: 0.1 Celsius
Refresh rate: 0.5 s
High temperature protection: 0 to 110 degrees Celsius (32 degrees Fahrenheit - 230 degrees Fahrenheit)

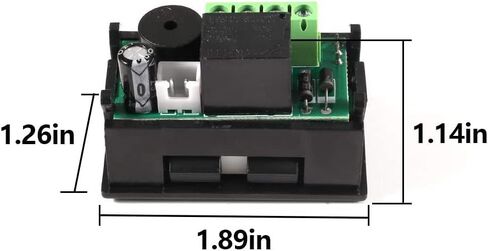

Module size: 48 x 29 x 32 mm/ 1.89 x 1.14 x 1.26 inch
Package includes:
5 x Temperature monitoring controllers
