Capsule Slip Ring,12.5mm 300Rpm 360° Rotary Joint 6 Wires V-Groove Ring Signal Transmit Electrical CIRCUITSx2A for Monitor Robotic Electrical Test Equipment

KWD 0
Brand
DAOKAI
Weight
50 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Product parameters: Current and voltage: 240 VAC/DC, 2A per channel, operating temperature: -40°~+80°
  • Durable and Reliable: Crafted with high-quality materials, this collector ring is built to last, offering long-term reliability and minimizing the need for frequent replacements.

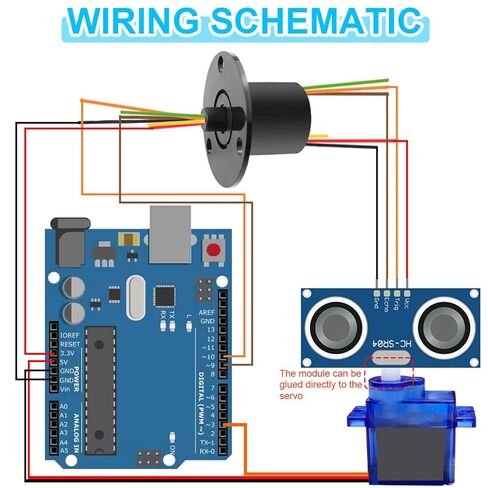

  • Simplified Circuit Connection: The stator wire and rotor wire are color-coded, making circuit connection easier and more convenient.
  • Smooth Rotation and Low Noise: The conductive ring features a 90-degree angle V line groove design, providing smooth rotation, low torque, and minimal electrical noise.
  • Combined Signal and Power Transmission: This slip ring can combine both signal and power transmission, fully satisfying the need for 360 degrees of rotation.
  • Stable and Durable: The Capsule slip ring is a standard, off-the-shelf series product with gold contacts at the rotary interface, ensuring stability and a long service life. Perfect for civil and commercial fields.
  • Package Content: You will receive 1 pcs 6 wire Capsule Slip Ring.

Description

Specifications:
Voltage: 240 VAC/DC
Current: 2A per circuits
Speed: 0-300 Rpm
Circuits: 6
Housing Material: Engineering Plastics
Work Humidity: 60%RH or higher
Work Temp.: -40℃~+80℃
Contact material: Gold plated ring-Gold plated brush
nsulation resistance: 1000 Mω @ 500 VDC
Lead size: 225mm 30# AWG Teflon wire
Dielectric strength: Between each circuit and all other circuits,≥ 500 VAC @ 50Hz
Electrical noise: ≤10mω
Work life: Depending on speed and working environment, ≥50,000,000 runs ref
Outside dia: 12.5mm(0.49inch)
Flange dia.: 24mm(0.94inch)
Length: 15mm(0.58inch)

Applications:
CCTV Monitoring System/Electrical test equipment/Medical equipment/obotics

Package Includes:
1 X 6 wires Capsule Slip Ring
