uxcell TQFP (32-100PIN) 0.5 / TQFP (32-64PIN) 0.8 to DIP Adapter PCB Board Surface Mounted Devices Converter 5pcs

KWD 4
– 1 +

Special Features

  • PRODUCT NAME- FR4 Glass Fiber DIY Double-Sided Surface Mounted Devices Converter PCB Board.

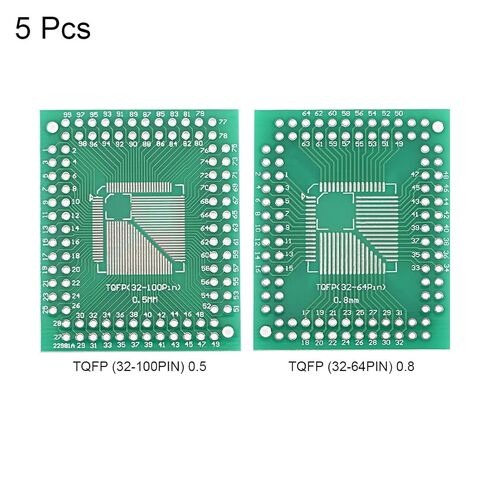

  • MODEL - Front is TQFP (32-100PIN) Pitch 0.5MM, Back is TQFP (32-64PIN) Pitch 0.8MM.
  • PARAMETER - 32-100 Pin,Pre Tinned,Board size:approx. 1.5 x 1.8 inch / 38 x 46 mm ( W x L );Thickness:approx. 1.6mm;Hole Diameter:1 mm;Hole Pitch:2.54mm.
  • FEATURES - The proto boards are thick and double sided. The plated holes are pre-tinned and very solid which make them very easy to solder components on.
  • PACKAGE CONTENT - 5pcs x DIP Converter PCB Board

Description

Tips:
When confirming that the number of pins is sufficient, the quick check only needs to check the following three dimensions: pin pitch, chip and pads width.
Suitable for MCU,series STC89C,,MSP43,etc.

Feature:
Front side : TQFP (32-100PIN) Pitch 0.5MM
Back side : TQFP (32-64PIN) Pitch 0.8MM

Parameter:
Product Name : Double-Sided Pre Tinned PCB Board
Material : Glass Fiber FR-4

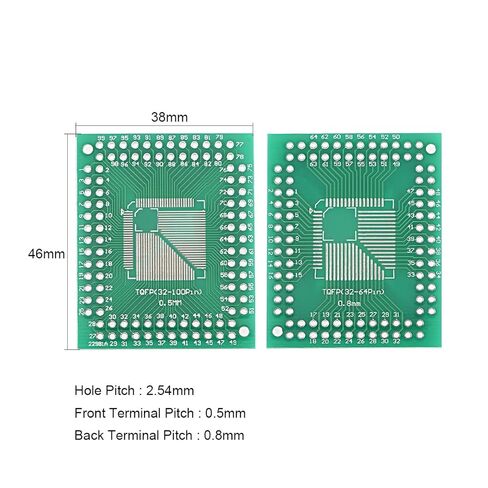

Board size : approx. 1.5 x 1.8 inch / 38 x 46 mm ( W x L )
Terminal Number : 32-100
Thickness : approx. 1.6mm
Hole Diameter : 1 mm
Hole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the SIP3 DIP bread board.)
Color : Green,Silver Tone
Net Weight : 25g

Package content:

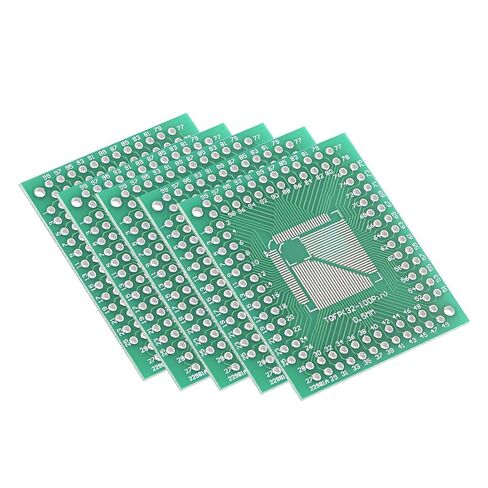

5 pcs x DIP Converter PCB Board
