Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB15HD Male)

KWD 5.500
Brand
CZH-LABS
StyleDB15HD Male
– 1 +

Special Features

  • This item has been assembled, and electrical test passed.
  • Pitch 3.81mm/0.15" screw terminal block.
  • FR-4 fiber glass PCB.
  • Rated voltage: 60V, Rated current: 500mA / per pin.
  • Operating Temperature: -20ºC to 50ºC

Description

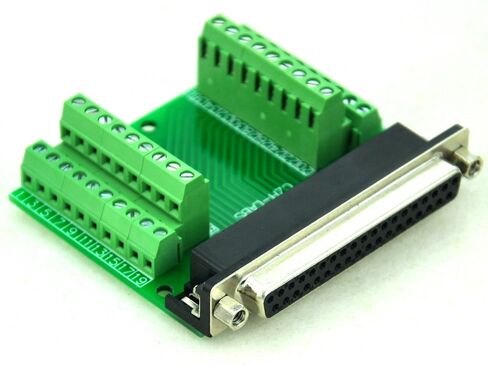

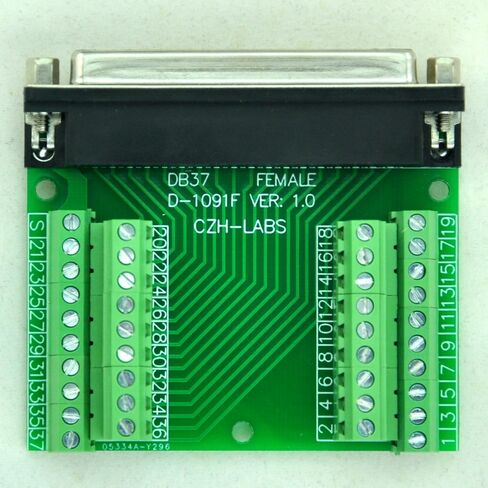

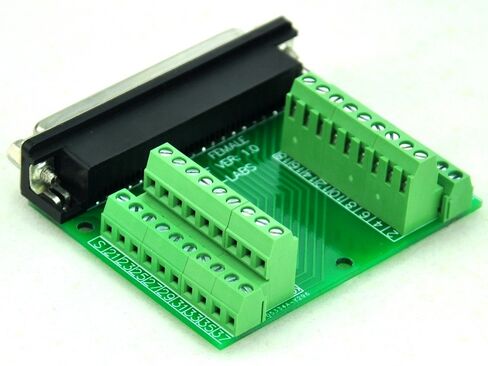

Slim Right Angle D'SUB Breakout Board.

This item has been assembled, and electrical test passed.
Pitch 3.81mm/0.15" screw terminal block.
FR-4 fiber glass PCB.
Rated voltage: 60V, Rated current: 500mA / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block:
Wire range 26 to 16AWG.
Strip length 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
